NEW HYUNDAI WIA KF5600C
Overview

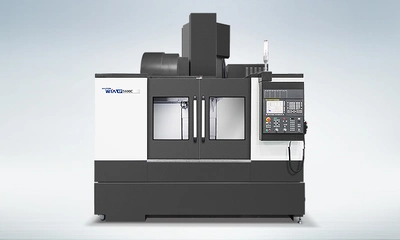

Hyundai Wia KF5600C
Features
Diverse spindle structure (direct-connection: 8K, 12K)
Increases strength through structural analysis
Machining area expanded to best-in-class 635mm Z-axis travel
Expands machining domain with y-axis 560mm design
Shortens not-cutting time with rapid feeds (40/40/36m/min.)
Applied the latest HEIDENHAIN TNC 620 controller
Specs
Table Size: 1250×560 mm
Max. Load Capacity: 1,000 kg
Spindle Driving Method: Direct
Spindle Taper: BBT40
Spindle RPM: 8,000 r/min
Spindle Power: 15/11 kW
Spindle Torque: 286/143 N.m
Travel(X/Y/Z): 1100/560/635 mm
Rapid Feed Rate(X/Y/Z): 40/40/36 m/min
Slide Type: LM
No. of Tools: 30 EA
Tool Change Time
(Chip To Chip): 3.2 sec
