NEW HYUNDAI WIA F850
Overview

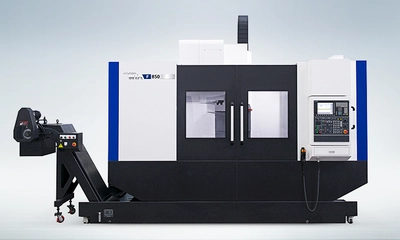

Hyundai Wia F850
Features
Designed specifically for processing large aluminum metal plates and sheets and other plates
850mm(33.4″) Y-axis for large work envelope
Y-axis with 4 guideways for superb rigidity and smooth motion
Roller Type LM Guide (130% increase in rated load compared to Ball Type)
12,000rpm high speed direct drive spindle
High speed, 24 Tool Twin Arm Automatic tool Changer (C-C : 4.7sec)
Specs
Table Size: 1,800×850 mm
Max. Load Capacity: 1,000 kg
Spindle Driving Method: Direct
Spindle Taper: BT40
Spindle RPM: 12,000 r/min
Spindle Power: 25/10.5 kW
Spindle Torque: 120/73 N.m
Travel(X/Y/Z): 1,600/850/580 mm
Rapid Feed Rate(X/Y/Z): 36/36/36 m/min
Slide Type: LM
No. of Tools: 24 EA
Tool Change Time
(Chip To Chip): 4.7 sec
