NEW TOYODA 965
Overview

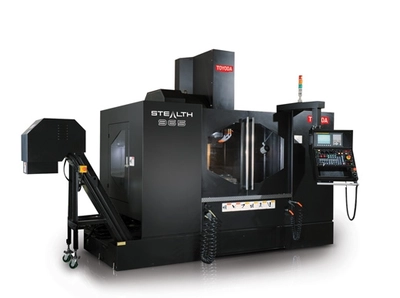

Stealth 965
The Stealth 965 is a high-speed vertical machining center that features four Y-axis box guideways, a Meehanite cast iron base, and powerful drive motors on the X, Y and Z axes. Ideal for job shop applications, the Stealth is as efficient as it is accurate.
Specs
Table Size: 43.3″ x 25.6″ (1,100 mm x 650 mm)
X-Axis Travel: 35.4″ (900 mm)
Y-Axis Travel: 25.6″ (650 mm)
Z-Axis Travel: 23.6″ (600 mm)
Maximum Table Load: 1,985 lb (900 kg)
Distance from Spindle Nose to Table Top: 4.9″ to 28.5″ (125 mm to 725 mm)
Spindle Drive Motor (30 min. / cont.): Gearbox (CAT40): 20 HP (15 kW) / 15 HP (11 kW)
Spindle Drive Motor (30 min. / cont.): Gearbox (CAT50): 25 HP (18.5 kW) / 20 HP (15 kW)
Spindle Drive Motor (30 min. / cont.): Direct Drive (CAT40): 25 HP (18.5 kW) / 20 HP (15 kW)
Spindle Output Torque: Gearbox (CAT40): 282ft-lb (380Nm)
Spindle Output Torque: Gearbox (CAT50): 339 ft-lb (460 Nm)
Spindle Output Torque: Direct Drive (CAT40) 92 ft-lb (125 Nm)
Spindle Speed: Gearbox (CAT40): 8,000 RPM
Spindle Speed: Gearbox (CAT50): 6,000 RPM
Spindle Speed: Direct Drive (CAT40): 12,000 RPM
Tool Storage Capacity: 24 Standard
Standard Floor Space: 159″ x 118″ x 116″ (4,048 mm x 2,990 mm x 2,940 mm)
Machine Weight: 15,432 lb (7,000 kg)
Chip Conveyor: Hinged Belt Lift Up type, 47″ Drop Height from floor
Table Size: 43.3″ x 25.6″ (1,100 mm x 650 mm)
X-Axis Travel: 35.4″ (900 mm)
Y-Axis Travel: 25.6″ (650 mm)
Z-Axis Travel: 23.6″ (600 mm)
Maximum Table Load: 1,985 lb (900 kg)
Distance from Spindle Nose to Table Top: 4.9″ to 28.5″ (125 mm to 725 mm)
Spindle Drive Motor (30 min. / cont.): Gearbox (CAT40): 20 HP (15 kW) / 15 HP (11 kW)
Spindle Drive Motor (30 min. / cont.): Direct Drive (CAT40): 25 HP (18.5 kW) /20 HP (15 kW)
Spindle Output Torque: Gearbox (CAT40): 282ft-lb (380Nm)
Spindle Output Torque: Direct Drive (CAT40): 92ft-lb (125Nm)
Spindle Speed: Gearbox (CAT40): 8,000 RPM
Spindle Speed: Gearbox (CAT50): 6,000 RPM
Spindle Speed: Direct Drive (CAT40): 12,000 RPM
Tool Storage Capacity: 24 Standard
Standard Floor Space: 159″ x 118″ x 116″ (4,048 mm x 2,990 mm x 2,940 mm)
Machine Weight: 15,432 lb (7,000 kg)
Chip Conveyor: Hinged Belt Lift Up type, 47″ Drop Height from floor
Table Size: 43.3″ x 25.6″ (1,100 mm x 650 mm)
X-Axis Travel: 35.4″ (900 mm)
Y-Axis Travel: 25.6″ (650 mm)
Z-Axis Travel: 23.6″ (600 mm)
Maximum Table Load: 1,985 lb (900 kg)
Distance from Spindle Nose to Table Top: 4.9″ to 28.5″ (125 mm to 725 mm)
Spindle Drive Motor (30 min. / cont.): Gearbox (CAT40): 20 HP (15 kW) / 15 HP (11 kW)
Spindle Drive Motor (30 min. / cont.): Gearbox (CAT50): 25 HP (18.5 kW) / 20 HP (15 kW)
Spindle Output Torque: Gearbox (CAT40): 282ft-lb (380Nm)
Spindle Output Torque: Gearbox (CAT50): 339 ft-lb (460 Nm)
Spindle Speed: Gearbox (CAT40): 8,000 RPM
Spindle Speed: Gearbox (CAT50): 6,000 RPM
Spindle Speed: Direct Drive (CAT40): 12,000 RPM
Tool Storage Capacity: 24 Standard
Standard Floor Space: 159″ x 118″ x 116″ (4,048 mm x 2,990 mm x 2,940 mm)
Machine Weight: 15,432 lb (7,000 kg)
Chip Conveyor: Hinged Belt Lift Up type, 47″ Drop Height from floor
