NEW TOYODA 1165
Overview

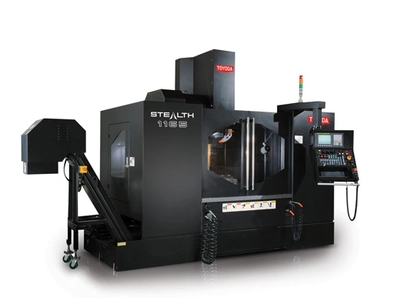

Stealth 1165
The Stealth 1165 is a high-speed vertical machining center that features four Y-axis box guideways, a Meehanite cast iron base, and powerful drive motors on the X, Y and Z axes. Ideal for job shop applications, the Stealth is as efficient as it is accurate.
Specs
51.2″ x 25.6″ (1,300 mm x 650 mm): 51.2″ x 25.6″ (1,300 mm x 650 mm)
43.3″ (1,100 mm): 43.3″ (1,100 mm)
25.6″ (650 mm): 25.6″ (650 mm)
23.6″ (600 mm): 23.6″ (600 mm)
2,425 lb (1,100 kg): 2,425 lb (1,100 kg)
4.9″ to 28.5″ (125 mm to 725 mm): 4.9″ to 28.5″ (125 mm to 725 mm)
Gearbox (CAT40): 20 HP (15 kW) / 15 HP (11 kW): Gearbox (CAT40): 20 HP (15 kW) / 15 HP (11 kW)
Gearbox (CAT50): 25 HP (18.5 kW) / 20 HP (15 kW): Gearbox (CAT50): 25 HP (18.5 kW) / 20 HP (15 kW)
Direct Drive (CAT40): 25 HP (18.5 kW) / 20 HP (15 kW): Direct Drive (CAT40): 25 HP (18.5 kW) / 20 HP (15 kW)
Gearbox (CAT40): 282 ft-lb (380 Nm): Gearbox (CAT40): 282 ft-lb (380 Nm)
Gearbox (CAT50): 339 ft-lb (460Nm): Gearbox (CAT50): 339 ft-lb (460Nm)
Direct Drive (CAT40): 92 ft-lb (125 Nm): Direct Drive (CAT40): 92 ft-lb (125 Nm)
Gearbox (CAT40): 8,000 RPM: Gearbox (CAT40): 8,000 RPM
Gearbox (CAT50): 6,000 RPM: Gearbox (CAT50): 6,000 RPM
Direct Drive (CAT40): 12,000 RPM: Direct Drive (CAT40): 12,000 RPM
24 Standard: 24 Standard
170″ x 118″ x 116″ (4,308 mm x 2,990 mm x 2,940 mm): 170″ x 118″ x 116″ (4,308 mm x 2,990 mm x 2,940 mm)
15,873 lb (7,200 kg): 15,873 lb (7,200 kg)
Hinged Belt Lift Up type, 47″ Drop Height from floor: Hinged Belt Lift Up type, 47″ Drop Height from floor
51.2″ x 25.6″ (1,300 mm x 650 mm): 51.2″ x 25.6″ (1,300 mm x 650 mm)
43.3″ (1,100 mm): 43.3″ (1,100 mm)
25.6″ (650 mm): 25.6″ (650 mm)
23.6″ (600 mm): 23.6″ (600 mm)
2,425 lb (1,100 kg): 2,425 lb (1,100 kg)
4.9″ to 28.5″ (125 mm to 725 mm): 4.9″ to 28.5″ (125 mm to 725 mm)
Gearbox (CAT40): 20 HP (15 kW) / 15 HP (11 kW): Gearbox (CAT40): 20 HP (15 kW) / 15 HP (11 kW)
Direct Drive (CAT40 ): 25 HP (18.5 kW) / 20 HP (15 kW): Direct Drive (CAT40 ): 25 HP (18.5 kW) / 20 HP (15 kW)
Gearbox (CAT40): 282 ft-lb (380 Nm): Gearbox (CAT40): 282 ft-lb (380 Nm)
Direct Drive (CAT40): 92 ft-lb (125 Nm): Direct Drive (CAT40): 92 ft-lb (125 Nm)
Gearbox (CAT40): 8,000 RPM: Gearbox (CAT40): 8,000 RPM
Direct Drive (CAT40): 12,000 RPM: Direct Drive (CAT40): 12,000 RPM
24 Standard: 24 Standard
170″ x 118″ x 116″ (4,308 mm x 2,990 mm x 2,940 mm): 170″ x 118″ x 116″ (4,308 mm x 2,990 mm x 2,940 mm)
15,873 lb (7,200 kg): 15,873 lb (7,200 kg)
Hinged Belt Lift Up type, 47″ Drop Height from floor: Hinged Belt Lift Up type, 47″ Drop Height from floor
2,425 lb (1,100 kg): 2,425 lb (1,100 kg)
4.9″ to 28.5″ (125 mm to 725 mm): 4.9″ to 28.5″ (125 mm to 725 mm)
Gearbox (CAT40): 20 HP (15 kW) / 15 HP (11 kW): Gearbox (CAT40): 20 HP (15 kW) / 15 HP (11 kW)
Gearbox (CAT50): 25 HP (18.5 kW) / 20 HP (15 kW): Gearbox (CAT50): 25 HP (18.5 kW) / 20 HP (15 kW)
Gearbox (CAT40): 282 ft-lb (380 Nm): Gearbox (CAT40): 282 ft-lb (380 Nm)
Gearbox (CAT50): 339 ft-lb (460Nm): Gearbox (CAT50): 339 ft-lb (460Nm)
Gearbox (CAT40): 8,000 RPM: Gearbox (CAT40): 8,000 RPM
Gearbox (CAT50): 6,000 RPM: Gearbox (CAT50): 6,000 RPM
24 Standard: 24 Standard
170″ x 118″ x 116″ (4,308 mm x 2,990 mm x 2,940 mm): 170″ x 118″ x 116″ (4,308 mm x 2,990 mm x 2,940 mm)
15,873 lb (7,200 kg): 15,873 lb (7,200 kg)
Hinged Belt Lift Up type, 47″ Drop Height from floor: Hinged Belt Lift Up type, 47″ Drop Height from floor
X-Axis Travel: 43.3"
Y-Axis Travel: 25.6"
Z-Axis Travel: 23.6"
