NEW TOYODA 1565
Overview

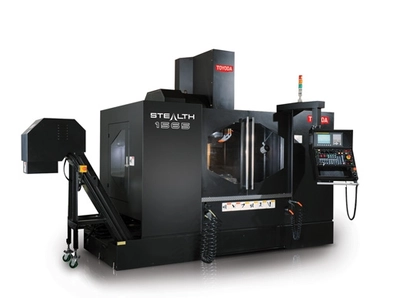

Stealth 1565
The Stealth 1565 is a high-speed vertical machining center that features four Y-axis box guideways, a Meehanite cast iron base, and powerful drive motors on the X, Y and Z axes. Ideal for job shop applications, the Stealth is as efficient as it is accurate.
Specs
Table Size: 65″ x 25.6″ (1,650 mm x 650 mm)
X-Axis Travel: 59.1″ (1,500 mm)
Y-Axis Travel: 25.6″ (650 mm)
Z-Axis Travel: 23.6″ (600 mm)
Maximum Table Load: 3,306 lb (1,500 kg)
Distance from Spindle Nose to Table Top: 4.9″ to 28.5″ (125 mm to 725 mm)
Spindle Drive Motor (30 min. / cont.): Gearbox (CAT40): 20 HP (15 kW) / 15 HP (11 kW)
Spindle Drive Motor (30 min. / cont.): Gearbox (CAT50): 25 HP (18.5 kW) / 20 HP (15 kW)
Spindle Drive Motor (30 min. / cont.): Direct Drive (CAT40): 25 HP (18.5 kW) / 20 HP (15 kW)
Spindle Output Torque: Gearbox (CAT40): 282 ft-lb (380 Nm)
Spindle Output Torque: Gearbox (CAT50): 339 ft-lb (460 Nm)
Spindle Output Torque: Direct Drive (CAT40): 92 ft-lb (125 Nm)
Spindle Speed: Gearbox (CAT40): 8,000 RPM
Spindle Speed: Gearbox (CAT50): 6,000 RPM
Spindle Speed: Direct Drive (CAT40): 12,000 RPM
Tool Storage Capacity: 24 Standard
Machine Weight: 17,857 lb (8,100 kg)
Standard Floor Space: 205″ x 118″ x 116″ (5,218 mm x 2,990 mm x 2,940 mm)
Table Size: 65″ x 25.6″ (1,650 mm x 650 mm)
X-Axis Travel: 59.1″ (1,500 mm)
Y-Axis Travel: 25.6″ (650 mm)
Z-Axis Travel: 23.6″ (600 mm)
Maximum Table Load: 3,306 lb (1,500 kg)
Distance from Spindle Nose to Table Top: 4.9″ to 28.5″ (125 mm to 725 mm)
Spindle Drive Motor (30 min. / cont.): CAT40 (Geared Head): 20 HP (15 kW) / 15 HP (11 kW)
Spindle Drive Motor (30 min. / cont.): CAT40 (Direct Drive): 25 HP (18.5 kW) / 20 HP (15 kW)
Spindle Output Torque: Gearbox (CAT40): 282 ft-lb (380 Nm)
Spindle Output Torque: Direct Drive (CAT40): 92 ft-lb (125 Nm)
Spindle Speed: Gearbox (CAT40): 8,000 RPM
Spindle Speed: Gearbox (CAT40): 8,000 RPM
Tool Storage Capacity: 24 Standard
Machine Weight: 17,857 lb (8,100 kg)
Standard Floor Space: 205″ x 118″ x 116″ (5,218 mm x 2,990 mm x 2,940 mm)
Table Size: 65″ x 25.6″ (1,650 mm x 650 mm)
X-Axis Travel: 59.1″ (1,500 mm)
Y-Axis Travel: 25.6″ (650 mm)
Z-Axis Travel: 23.6″ (600 mm)
Maximum Table Load: 3,306 lb (1,500 kg)
Distance from Spindle Nose to Table Top: 4.9″ to 28.5″ (125 mm to 725 mm)
Spindle Drive Motor (30 min. / cont.): CAT40 (Geared Head): 20 HP (15 kW) / 15 HP (11 kW)
Spindle Drive Motor (30 min. / cont.): CAT50: 25 HP (18.5 kW) / 20 HP (15 kW)
Spindle Output Torque: Gearbox (CAT40): 282 ft-lb (380 Nm)
Spindle Output Torque: Gearbox (CAT50): 339 ft-lb (460 Nm)
Spindle Speed: Gearbox (CAT40): 8,000 RPM
Spindle Speed: Gearbox (CAT50): 6,000 RPM
Maximum Cutting Feedrate: 945 ipm (24 m/min)
Tool Storage Capacity: 24 Standard
Machine Weight: 17,857 lb (8,100 kg)
Standard Floor Space: 205″ x 118″ x 116″ (5,218 mm x 2,990 mm x 2,940 mm)
