NEW TOYODA 1480
Overview

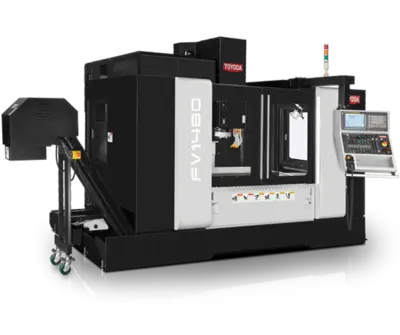

FV1480

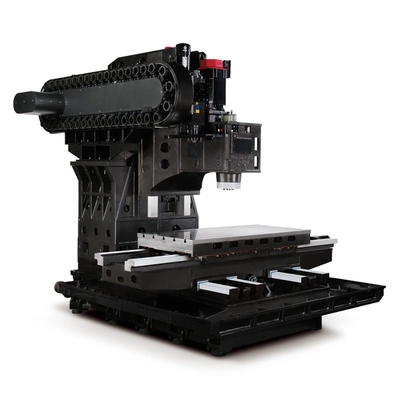

The FV1480 is a heavy-duty vertical machining center that features four Y-axis box guideways, a Meehanite cast iron base, and a high-performance spindle.
Specs
Table Size: 61″ x 31.5″ (1,550 mm x 800 mm)
X-Axis Travel: 55.1″ (1,400 mm)
Y-Axis Travel: 31.5″ (800 mm)
Z-Axis Travel: 27.6″ (700 mm)
Maximum Table Load: 3,960 lb (1,800 kg)
Distance from Spindle Nose to Table Top: 7.9″ to 35.4″ (200 mm to 900 mm)
Spindle Drive Motor (30 min. / cont.): 35 HP (26 kW) / 30 HP (22 kW)
Spindle Output Torque: 485 ft-lb (658 Nm)
Spindle Speed: Gearbox (CAT50): 6,000 RPM
Spindle Speed: Direct Drive (CAT50): 10,000 RPM DIRECT DRIVE
Tool Storage Capacity: 40 Standard (60 Optional)
Standard Floor Space: 201″ x 172″ x 132″ (5,113 mm x 4,374 mm x 3,342 mm)
Machine Weight: 26,455 lb (12,000 kg)
Chip Conveyor: Hinged Belt Lift Up type, 47″ Drop Height from floor
Table Size: 61″ x 31.5″ (1,550 mm x 800 mm)
X-Axis Travel: 55.1″ (1,400 mm)
Y-Axis Travel: 31.5″ (800 mm)
Z-Axis Travel: 27.6″ (700 mm)
Maximum Table Load: 3,960 lb (1,800 kg)
Distance from Spindle Nose to Table Top: 7.9″ to 35.4″ (200 mm to 900 mm)
Spindle Drive Motor (30 min. / cont.): 35 HP (26 kW) / 30 HP (22 kW)
Spindle Output Torque: 485 ft-lb (658 Nm)
Spindle Speed: Gearbox (CAT50): 6,000 RPM
Spindle Speed: Direct Drive (CAT50): 10,000 RPM
Tool Storage Capacity: 40 Standard (60 Optional)
Standard Floor Space: 201″ x 172″ x 132″ (5,113 mm x 4,374 mm x 3,342 mm)
Machine Weight: 26,455 lb (12,000 kg)
Chip Conveyor: Hinged Belt Lift Up type, 47″ Drop Height from floor
Table Size: 61″ x 31.5″ (1,550 mm x 800 mm)
X-Axis Travel: 55.1″ (1,400 mm)
Y-Axis Travel: 31.5″ (800 mm)
Z-Axis Travel: 27.6″ (700 mm)
Maximum Table Load: 3,960 lb (1,800 kg)
Distance from Spindle Nose to Table Top: 7.9″ to 35.4″ (200 mm to 900 mm)
Spindle Drive Motor (30 min. / cont.): 35 HP (26 kW) / 30 HP (22 kW)
Spindle Output Torque: 485 ft-lb (658 Nm)
Spindle Speed: Gearbox (CAT50): 6,000 RPM
Spindle Speed: Direct Drive (CAT50): 10,000 RPM DIRECT DRIVE
Tool Storage Capacity: 40 Standard (60 Optional)
Standard Floor Space: 201″ x 172″ x 132″ (5,113 mm x 4,374 mm x 3,342 mm)
Machine Weight: 26,455 lb (12,000 kg)
Chip Conveyor: Hinged Belt Lift Up type, 47″ Drop Height from floor
