NEW TOYODA 1680
Overview

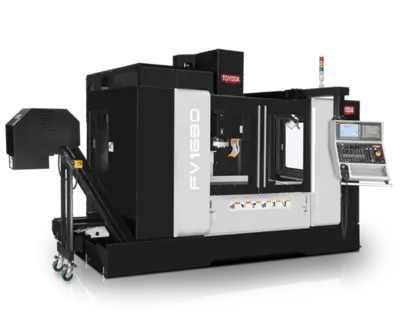

FV1680

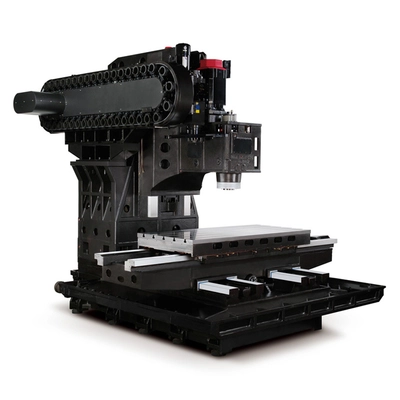

The FV1680 is a heavy-duty vertical machining center that features four Y-axis box guideways, a Meehanite cast iron base, and a high-performance spindle.
Specs
Table Size: 68.9″ x 31.5″ (1,750 mm x 800 mm)
X-Axis Travel: 63″ (1,600 mm)
Y-Axis Travel: 31.5″ (800 mm)
Z-Axis Travel: 31.5″ (800 mm)
Maximum Table Load: 4,400 lb (2,000 kg)
Distance from Spindle Nose to Table Top: 7.9″ to 39.4″ (200 mm to 1,000 mm)
Spindle Drive Motor (30 min. / cont.): 35 HP (26 kW) / 30 HP (22 kW)
Spindle Output Torque: 485 ft-lb (658 Nm)
Spindle Speed: Gearbox (CAT50): 6,000 RPM
Spindle Speed: Direct Drive (CAT50): 10,000 RPM DIRECT DRIVE
Tool Storage Capacity: 40 Standard (60 Optional)
Standard Floor Space: 217″ x 172″ x 137″ (5,516 mm x 4,374 mm x 3,378 mm)
Machine Weight: 35,273 lb (16,000 kg)
Chip Conveyor: Hinged Belt Lift Up type, 47″ Drop Height from floor
Table Size: 68.9″ x 31.5″ (1,750 mm x 800 mm)
X-Axis Travel: 63″ (1,600 mm)
Y-Axis Travel: 31.5″ (800 mm)
Z-Axis Travel: 31.5″ (800 mm)
Maximum Table Load: 4,400 lb (2,000 kg)
Distance from Spindle Nose to Table Top: 7.9″ to 39.4″ (200 mm to 1,000 mm)
Spindle Drive Motor (30 min. / cont.): 35 HP (26 kW) / 30 HP (22 kW)
Spindle Output Torque: 485 ft-lb (658 Nm)
Spindle Speed: Gearbox (CAT50): 6,000 RPM
Spindle Speed: Direct Drive (CAT50): 10,000 RPM
Tool Storage Capacity: 40 Standard (60 Optional)
Standard Floor Space: 217″ x 172″ x 137″ (5,516 mm x 4,374 mm x 3,378 mm)
Machine Weight: 35,273 lb (16,000 kg)
Chip Conveyor: Hinged Belt Lift Up type, 47″ Drop Height from floor
Table Size: 68.9″ x 31.5″ (1,750 mm x 800 mm)
X-Axis Travel: 63″ (1,600 mm)
Y-Axis Travel: 31.5″ (800 mm)
Z-Axis Travel: 31.5″ (800 mm)
Maximum Table Load: 4,400 lb (2,000 kg)
Distance from Spindle Nose to Table Top: 7.9″ to 39.4″ (200 mm to 1,000 mm)
Spindle Drive Motor (30 min. / cont.): 35 HP (26 kW) / 30 HP (22 kW)
Spindle Output Torque: 485 ft-lb (658 Nm)
Spindle Speed: Gearbox (CAT50): 6,000 RPM
Spindle Speed: Direct Drive (CAT50): 10,000 RPM DIRECT DRIVE
Tool Storage Capacity: 40 Standard (60 Optional)
Standard Floor Space: 217″ x 172″ x 137″ (5,516 mm x 4,374 mm x 3,378 mm)
Machine Weight: 35,273 lb (16,000 kg)
Chip Conveyor: Hinged Belt Lift Up type, 47″ Drop Height from floor
