NEW TOYODA 2090
Overview

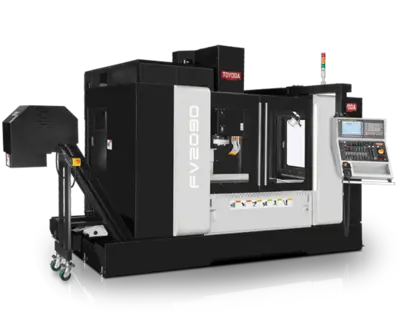

FV2090

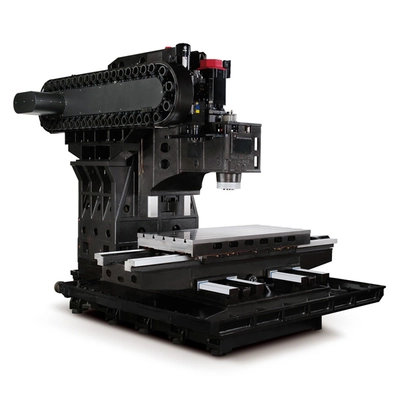

The FV2090 is a heavy-duty vertical machining center that features four Y-axis box guideways, a Meehanite cast iron base, and a high-performance spindle.
Specs
Table Size: 84.6″ x 35.4″ (2,150 mm x 900 mm)
X-Axis Travel: 78.7″ (2,000 mm)
Y-Axis Travel: 35.4″ (900 mm)
Z-Axis Travel: 35.4″ (900 mm)
Maximum Table Load: 4,840 lb (2,200 kg)
Distance from Spindle Nose to Table Top: 7.9″ to 39.4″ (200 mm to 1,000 mm)
Spindle Drive Motor (30 min. / cont.): 35 HP (26 kW) / 30 HP (22 kW)
Spindle Output Torque: 485 ft-lb (658 Nm)
Spindle Speed: Gearbox (CAT50): 6,000 RPM
Spindle Speed: Direct Drive (CAT50): 10,000 RPM DIRECT DRIVE
Tool Storage Capacity: 30 Standard (40, 60 Optional)
Standard Floor Space: 255″ x 195″ x 143″ (6,480 mm x 4,948 mm x 3,620 mm)
Machine Weight: 50,705 lb (23,000 kg)
Chip Conveyor: Hinged Belt Lift Up type, 47″ Drop Height from floor
Table Size: 84.6″ x 35.4″ (2,150 mm x 900 mm)
X-Axis Travel: 78.7″ (2,000 mm)
Y-Axis Travel: 35.4″ (900 mm)
Z-Axis Travel: 35.4″ (900 mm)
Maximum Table Load: 4,840 lb (2,200 kg)
Distance from Spindle Nose to Table Top: 7.9″ to 39.4″ (200 mm to 1,000 mm)
Spindle Drive Motor (30 min. / cont.): 35 HP (26 kW) / 30 HP (22 kW)
Spindle Output Torque: 485 ft-lb (658 Nm)
Spindle Speed: Gearbox (CAT50): 6,000 RPM
Spindle Speed: Direct Drive (CAT50): 10,000 RPM
Tool Storage Capacity: 30 Standard (40, 60 Optional)
Standard Floor Space: 255″ x 195″ x 143″ (6,480 mm x 4,948 mm x 3,620 mm)
Machine Weight: 50,705 lb (23,000 kg)
Chip Conveyor: Hinged Belt Lift Up type, 47″ Drop Height from floor
Table Size: 84.6″ x 35.4″ (2,150 mm x 900 mm)
X-Axis Travel: 78.7″ (2,000 mm)
Y-Axis Travel: 35.4″ (900 mm)
Z-Axis Travel: 35.4″ (900 mm)
Maximum Table Load: 4,840 lb (2,200 kg)
Distance from Spindle Nose to Table Top: 7.9″ to 39.4″ (200 mm to 1,000 mm)
Spindle Drive Motor (30 min. / cont.): 35 HP (26 kW) / 30 HP (22 kW)
Spindle Output Torque: 485 ft-lb (658 Nm)
Spindle Speed: Gearbox (CAT50): 6,000 RPM
Spindle Speed: Direct Drive (CAT50): 10,000 RPM DIRECT DRIVE
Tool Storage Capacity: 30 Standard (40, 60 Optional)
Standard Floor Space: 255″ x 195″ x 143″ (6,480 mm x 4,948 mm x 3,620 mm)
Machine Weight: 50,705 lb (23,000 kg)
Chip Conveyor: Hinged Belt Lift Up type, 47″ Drop Height from floor
