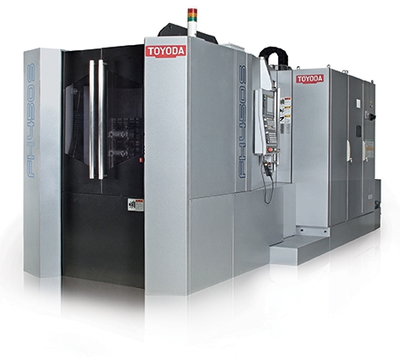

NEW TOYODA FH450S
Overview
FH450S
The FH450S is a high-speed horizontal machining center featuring a 15,000 RPM spindle, tool-to-tool cycle time of 1.3 seconds, and a rapid feedrate of 1,968 ipm (50 m/min).
FERROUS SPECS
NON-FERROUS SPECS
HIGH TEMP ALLOY SPECS
ACCURACY
REEQUIREMENTS
Specs
Pallet Size: 17.7″ x 17.7″ (450 mm x 450 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 23.62” (600 mm)
Y-Axis Travel: 23.62” (600 mm)
Z-Axis Travel: 23.62” (600 mm)
Max Workpiece Swing: 24.80” (630 mm)
Max Workpiece Height: 35.43″ (900 mm)
Maximum Work Load on the Pallet: 880 lb (400 kg)
Spindle Output Torque: 123 ft-lb (167 Nm)
Available Spindle: CAT#40 30 HP 15,000 RPM (0-15,000 in 1.9 sec)
Available Spindle: CAT#40 30 HP 20,000 RPM (0-20,000 in 2.4 sec)
Rapid Feedrate (X axis): 1,968 ipm (50 m/min)
Rapid Feedrate (Y axis): 1,968 ipm (50 m/min)
Rapid Feedrate (Z axis): 1,968 ipm (50 m/min)
Tool Storage Capacity: 60 Standard (120 Optional)
Standard Floor Space: 100″ x 243″ (2,520 mm x 6,159 mm)
Machine Height: 125″ (3,160 mm)
Standard Net Weight: 25,300 lb (11,500 kg)
Pallet Size: 17.7″ x 17.7″ (450 mm x 450 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 23.62” (600 mm)
Y-Axis Travel: 23.62” (600 mm)
Z-Axis Travel: 23.62” (600 mm)
Max Workpiece Swing: 24.80” (630 mm)
Max Workpiece Height: 35.43″ (900 mm)
Maximum Work Load on the Pallet: 880 lb (400 kg)
Spindle Output Torque: 123 ft-lb (167 Nm)
Available Spindle: CAT#40 30 HP 15,000 RPM (0-15,000 in 1.9 sec)
Available Spindle: CAT#40 30 HP 20,000 RPM (0-20,000 in 2.4 sec)
Rapid Feedrate (X axis): 1,968 ipm (50 m/min)
Rapid Feedrate (Y axis): 1,968 ipm (50 m/min)
Rapid Feedrate (Z axis): 1,968 ipm (50 m/min)
Tool Storage Capacity: 60 Standard (120 Optional)
Standard Floor Space: 100″ x 243″ (2,520 mm x 6,159 mm)
Machine Height: 125″ (3,160 mm)
Standard Net Weight: 25,300 lb (11,500 kg)
Pallet Size: 17.7″ x 17.7″ (450 mm x 450 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 23.62” (600 mm)
Y-Axis Travel: 23.62” (600 mm)
Z-Axis Travel: 23.62” (600 mm)
Max Workpiece Swing: 24.80” (630 mm)
Max Workpiece Height: 35.43″ (900 mm)
Maximum Work Load on the Pallet: 880 lb (400 kg)
Spindle Output Torque: 123 ft-lb (167 Nm)
Available Spindle: CAT#40 30 HP 15,000 RPM (0-15,000 in 1.9 sec)
Rapid Feedrate (X axis): 1,968 ipm (50 m/min)
Rapid Feedrate (Y axis): 1,968 ipm (50 m/min)
Rapid Feedrate (Z axis): 1,968 ipm (50 m/min)
Tool Storage Capacity: 60 Standard (120 Optional)
Standard Floor Space: 100″ x 243″ (2,520 mm x 6,159 mm)
Machine Height: 125″ (3,160 mm)
Standard Net Weight: 25,300 lb (11,500 kg)
Linear Position Accuracy: ±.00012″ (.003 mm) full stroke
Linear Repeatability: ± .00006″ (.0015 mm)
Rotary Table Index Accuracy: ± 7 arc seconds
Rotary Table Index Repeatability: ± 3.5 arc seconds
Hydraulic Oil: Mobil DTE Oil Light (14 gal)
Slideway Lubrication: Mobil Vactra #2 (.76 gal)
Spindle Bearing Lubrication: Mobil Velocite #6 (.76 gal)
Spindle Cooling: Mobil Velocite #3 (4.2 gal)
Table Lubrication: Mobil Gear 600 XP 150 (1.1 gal)
Air Source: 56 ~ 70 psi (4 ~ 5 kgf / cm²)
Power Capacity (Machine Wired: 208V – Transformer Not Included): 52 kVA
