NEW TOYODA FH500J
Overview
FH500J

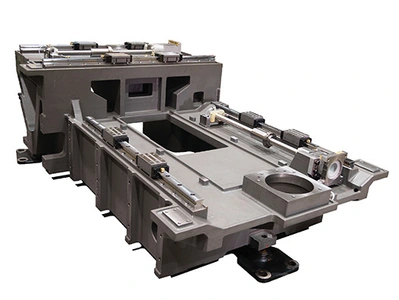

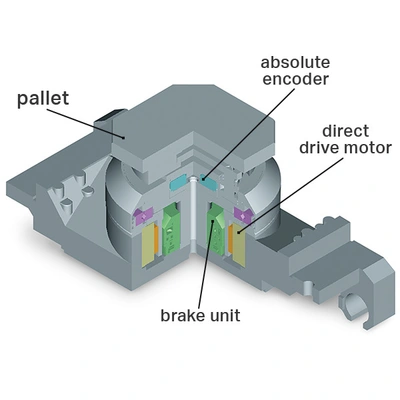

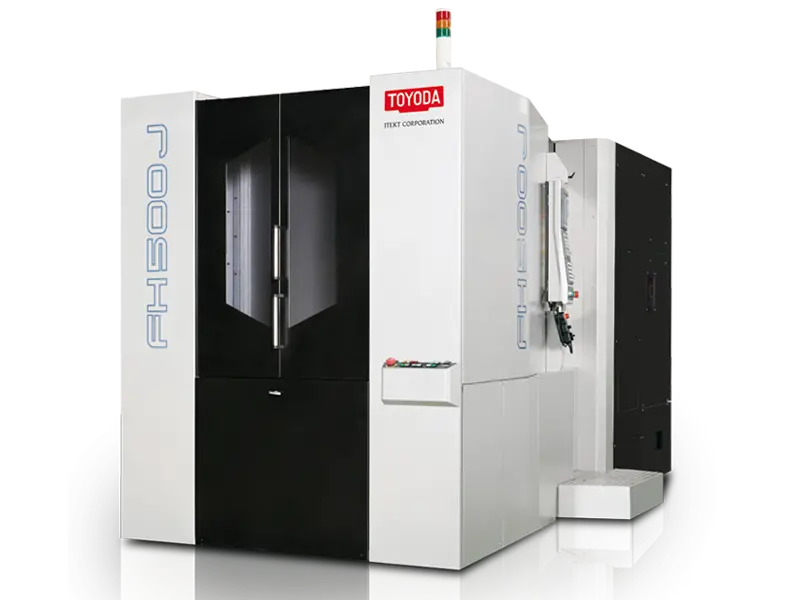

The FH500J and FH500J-50 are compact, high-speed horizontal machining centers featuring a 15,000 RPM spindle, tool-to-tool cycle time of .9 seconds, and a rapid feedrate of 2,362 ipm (60 m/min). All FH500J models (#40 & #50) taper are equipped with a Direct Drive B Axis Table, featuring an index time (90 degrees) of 0.5 seconds and 360,000 degree positioning.
FERROUS SPECS
NON-FERROUS SPECS
HIGH TEMP ALLOY SPECS
ACCURACY
REEQUIREMENTS
Specs
Pallet Size: 19.68″ x 19.68″ (500 mm x 500 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 28.74” (730 mm)
Y-Axis Travel: 28.74” (730 mm)
Z-Axis Travel: 33.46” (850 mm)
Max Workpiece Swing: 31.50” (800 mm)
Max Workpiece Height: 39.37″ (1,000 mm)
Maximum Work Load on the Pallet: 1,540 lb (700 kg)
Spindle Output Torque: 295 ft-lb (400 Nm)
Available Spindle: CAT#50 50HP 15,000 RPM (High Torque 303 Nm)
Rapid Feedrate (X axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Y axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Z axis): 2,362 ipm (60 m/min)
Tool Storage Capacity: 60 Standard (119 Optional)
Standard Floor Space: 91.73″ x 182.28″ (2,330 mm x 4,630 mm)
Machine Height: 113″ (2,870 mm)
Standard Net Weight: 29,700 lb (13,500 kg)
Pallet Size: 19.68″ x 19.68″ (500 mm x 500 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 28.74” (730 mm)
Y-Axis Travel: 28.74” (730 mm)
Z-Axis Travel: 33.46” (850 mm)
Max Workpiece Swing: 31.50” (800 mm)
Max Workpiece Height: 39.37″ (1,000 mm)
Maximum Work Load on the Pallet: 1,540 lb (700 kg)
Spindle Output Torque: 123 ft-lb (167 Nm)
Available Spindle: CAT#40 30HP 15,000 RPM (0-15,000 in 1.9 sec)
Available Spindle: CAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
Rapid Feedrate (X axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Y axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Z axis): 2,362 ipm (60 m/min)
Tool Storage Capacity: 60 Standard (119 Optional)
Standard Floor Space: 91.73″ x 182.28″ (2,330 mm x 4,630 mm)
Machine Height: 113″ (2,870 mm)
Standard Net Weight: 29,700 lb (13,500 kg)
Pallet Size: 19.68″ x 19.68″ (500 mm x 500 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 28.74” (730 mm)
Y-Axis Travel: 28.74” (730 mm)
Z-Axis Travel: 33.46” (850 mm)
Max Workpiece Swing: 31.50” (800 mm)
Max Workpiece Height: 39.37″ (1,000 mm)
Maximum Work Load on the Pallet: 1,540 lb (700 kg)
Spindle Output Torque: 295 ft-lb (400 Nm)
Available Spindle: CAT#50 50HP 15,000 RPM (High Torque 303 Nm)
Rapid Feedrate (X axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Y axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Z axis): 2,362 ipm (60 m/min)
Tool Storage Capacity: 60 Standard (119 Optional)
Standard Floor Space: 91.73″ x 182.28″ (2,330 mm x 4,630 mm)
Machine Height: 113″ (2,870 mm)
Standard Net Weight: 29,700 lb (13,500 kg)
Linear Position Accuracy: ± .00012″ (.003 mm) full stroke
Linear Repeatability: ± .00008″ (.002 mm)
Rotary Table Index Accuracy: ± 7 arc seconds
Rotary Table Index Repeatability: ± 3.5 arc seconds
Hydraulic Oil: Mobil DTE Oil Light (4.75 gal)
Slideway Lubrication: Mobil Vactra #2 (1.1 gal)
Spindle Bearing Lubrication: Mobil Velocite #6 (1.1 gal)
Spindle Cooling: Mobil Velocite #3 (5.3 gal)
Table Lubrication: Mobil Gear 600 XP 150 (.79 gal)
Air Source: 56 ~ 70 psi (4 ~ 5 kgf / cm²)
Power Capacity (Machine Wired: 208V – Transformer Not Included): 51 kVA
