NEW TOYODA FH630SX-I
Overview
Toyoda FH630SX-i

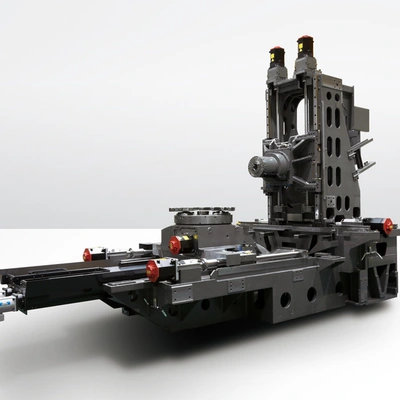

The FH630SX-i is a powerful, high-speed horizontal machining center featuring an 8,000 RPM spindle, with the option of a 15,000 RPM high-torque spindle, and a rapid feedrate of 2,362 ipm (60 m/min). This machine has dual ballscrew drive on the Y and Z axes, and a Meehanite cast iron base for improved rigidity.
Video Link
FERROUS SPECS
NON-FERROUS SPECS
HIGH TEMP ALLOY SPECS
ACCURACY
REQUIREMENTS
Specs
Pallet Size: 24.8″ x 24.8″ (630 mm x 630 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 41.34” (1,050 mm)
Y-Axis Travel: 35.43” (900 mm)
Z-Axis Travel: 41.34” (1,050 mm)
Max Workpiece Swing: 46.06” (1,170 mm)
Max Workpiece Height: 49.21″ (1,250 mm)
Maximum Work Load on the Pallet: 3,306 lb (1,500 kg)
Spindle Output Torque: 391 ft-lb (530 Nm)
Available Spindle: CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Rapid Feedrate (X axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Y axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Z axis): 2,362 ipm (60 m/min)

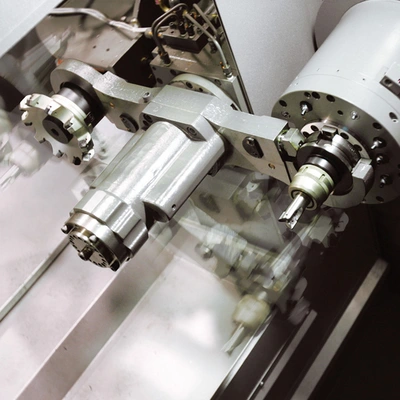

Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 141.7″ x 271.6″ (3,600 mm x 6,900 mm)
Machine Height: 126.1″ (3,203 mm)
Standard Net Weight: 43,210 lb (19,600 kg)
Pallet Size: 24.8″ x 24.8″ (630 mm x 630 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 41.34” (1,050 mm)
Y-Axis Travel: 35.43” (900 mm)
Z-Axis Travel: 41.34” (1,050 mm)
Max Workpiece Swing: 46.06” (1,170 mm)
Max Workpiece Height: 49.21″ (1,250 mm)
Maximum Work Load on the Pallet: 3,306 lb (1,500 kg)
Spindle Output Torque: 123 ft-lb (167 Nm)
Available Spindle: CAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
Rapid Feedrate (X axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Y axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Z axis): 2,362 ipm (60 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 141.7″ x 271.6″ (3,600 mm x 6,900 mm)
Machine Height: 126.1″ (3,203 mm)
Standard Net Weight: 43,210 lb (19,600 kg)
Pallet Size: 24.8″ x 24.8″ (630 mm x 630 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 41.34” (1,050 mm)
Y-Axis Travel: 35.43” (900 mm)
Z-Axis Travel: 41.34” (1,050 mm)
Max Workpiece Swing: 46.06” (1,170 mm)
Max Workpiece Height: 49.21″ (1,250 mm)
Maximum Work Load on the Pallet: 3,306 lb (1,500 kg)
Spindle Output Torque: 744 ft-lb (1,009 Nm)
Available Spindle: CAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
Rapid Feedrate (X axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Y axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Z axis): 2,362 ipm (60 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 141.7″ x 271.6″ (3,600 mm x 6,900 mm)
Machine Height: 126.1″ (3,203 mm)
Standard Net Weight: 43,210 lb (19,600 kg)
