NEW TOYODA FH550SX
Overview
FH550SX

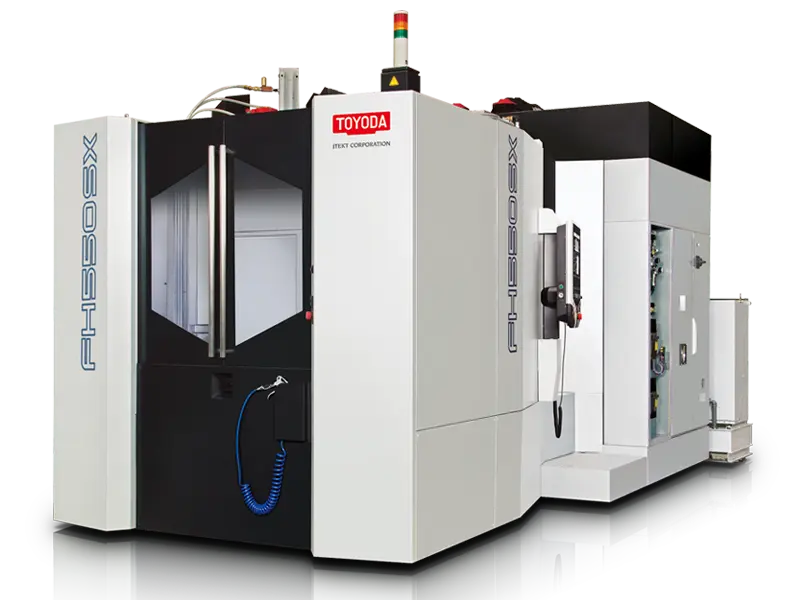

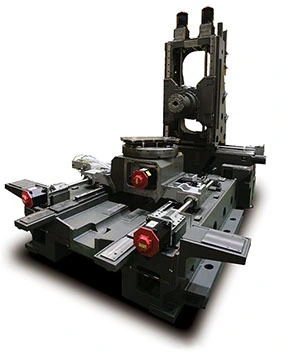

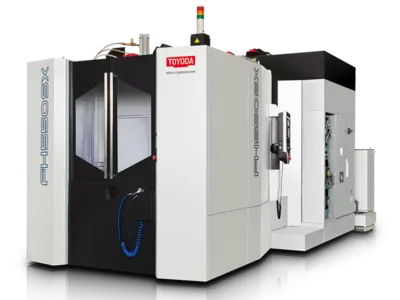

The FH550SX is a powerful, high-speed horizontal machining center featuring an 8,000 RPM high-torque spindle, with an option of 15,000 RPM spindle, and a rapid feedrate of 2,362 ipm (60 m/min). This machine has dual ballscrew drive on the Y and Z axes, and a Meehanite cast iron base for improved rigidity.
FERROUS SPECS
NON-FERROUS SPECS
HIGH TEMP ALLOY SPECS
ACCURACY
REEQUIREMENTS
Specs
Pallet Size: 21.65″ x 21.65″ (550 mm x 550 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 29.52” (750 mm)
Y-Axis Travel: 31.50” (800 mm)
Z-Axis Travel: 33.46” (850 mm)
Max Workpiece Swing: 33.46” (850 mm)
Max Workpiece Height: 39.37″ (1,000 mm)
Maximum Work Load on the Pallet: 1,760 lb (800 kg)
Spindle Output Torque: 391 ft-lb (530 Nm)
Available Spindle: CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Rapid Feedrate (X axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Y axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Z axis): 2,362 ipm (60 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 130″ x 224″ (3,312 mm x 5,695 mm)
Machine Height: 126″ (3,200 mm)
Standard Net Weight: 35,494 lb (16,100 kg)
Pallet Size: 21.65″ x 21.65″ (550 mm x 550 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 29.52” (750 mm)
Y-Axis Travel: 31.50” (800 mm)
Z-Axis Travel: 33.46” (850 mm)
Max Workpiece Swing: 33.46” (850 mm)
Max Workpiece Height: 39.37″ (1,000 mm)
Maximum Work Load on the Pallet: 1,760 lb (800 kg)
Spindle Output Torque: 123 ft-lb (167 Nm)
Available Spindle: CAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
Rapid Feedrate (X axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Y axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Z axis): 2,362 ipm (60 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 130″ x 224″ (3,312 mm x 5,695 mm)
Machine Height: 126″ (3,200 mm)
Standard Net Weight: 35,494 lb (16,100 kg)
Pallet Size: 21.65″ x 21.65″ (550 mm x 550 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 29.52” (750 mm)
Y-Axis Travel: 31.50” (800 mm)
Z-Axis Travel: 33.46” (850 mm)
Max Workpiece Swing: 33.46” (850 mm)
Max Workpiece Height: 39.37″ (1,000 mm)
Maximum Work Load on the Pallet: 1,760 lb (800 kg)
Spindle Output Torque: 744 ft-lb (1,009 Nm)
Available Spindle: CAT#50 50HP 8,000 RPM (High Torque 1009 Nm)
Rapid Feedrate (X axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Y axis): 2,362 ipm (60 m/min)
Rapid Feedrate (Z axis): 2,362 ipm (60 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 130″ x 224″ (3,312 mm x 5,695 mm)
Machine Height: 126″ (3,200 mm)
Standard Net Weight: 35,494 lb (16,100 kg)
