NEW TOYODA FH800SX-I
Overview

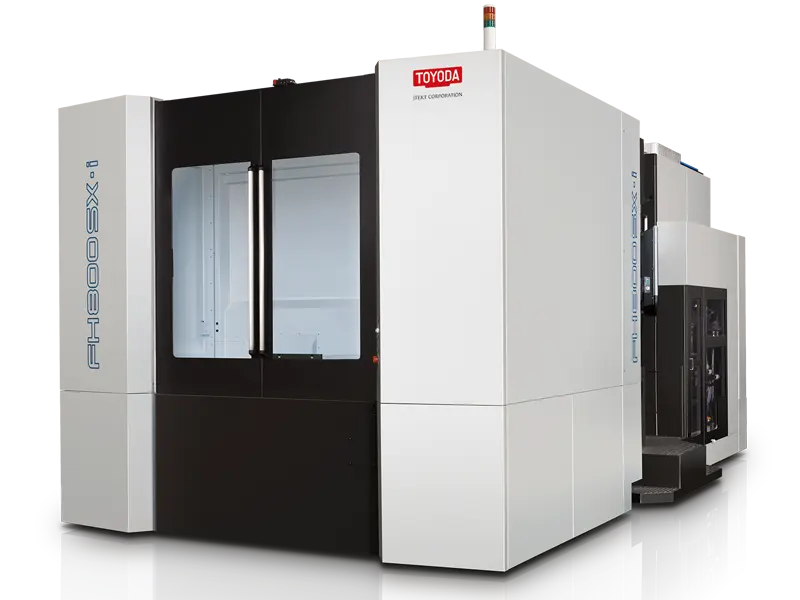

FH800SX-i

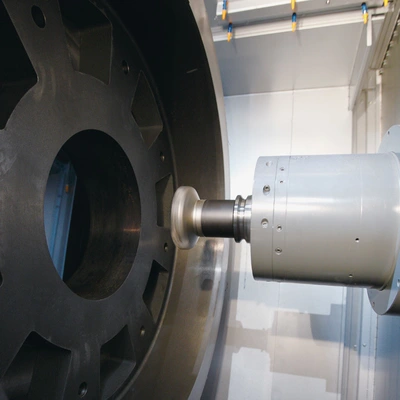

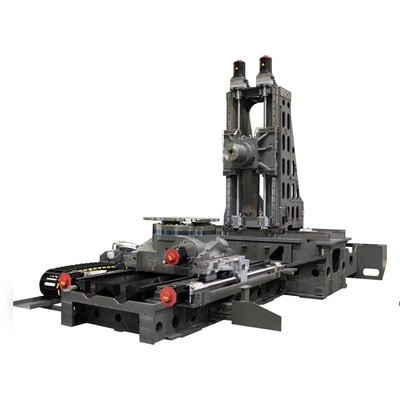

The FH800SX-i is a powerful, high-speed horizontal machining center featuring a 6,000 RPM spindle, with options of an 8,000 RPM or 15,000 RPM high-torque spindle, and a rapid feedrate of 2,127 ipm (54 m/min). This machine has dual ballscrew drive on the Y and Z axes, and a Meehanite cast iron base for improved rigidity. The expansive work envelope allows for large-part machining.
Specs
Pallet Size: 31.5” x 31.5” (800 mm x 800 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 57.1” (1,450 mm)
Y-Axis Travel: 49.2” (1,250 mm)
Z-Axis Travel: 61” (1,550 mm)
Max Workpiece Swing: 59.06” (1,500 mm)
Max Workpiece Height: 59.06” (1,500 mm)
Maximum Work Load on the Pallet: 5,500 lb (2,500 kg)
Spindle Output Torque: 391 ft-lb (530 Nm)
Available Spindle: CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Rapid Feedrate (X axis): 2,127 ipm (54 m/min)
Rapid Feedrate (Y axis): 2,127 ipm (54 m/min)
Rapid Feedrate (Z axis): 2,127 ipm (54 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 185” x 304″ (4,680 mm x 7,710 mm)
Machine Height: 145″ (3,680 mm)
Standard Net Weight: 61,600 lb (28,000 kg)
Pallet Size: 31.5” x 31.5” (800 mm x 800 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 57.1” (1,450 mm)
Y-Axis Travel: 49.2” (1,250 mm)
Z-Axis Travel: 61” (1,550 mm)
Max Workpiece Swing: 59.06” (1,500 mm)
Max Workpiece Height: 59.06” (1,500 mm)
Maximum Work Load on the Pallet: 5,500 lb (2,500 kg)
Spindle Output Torque: 123 ft-lb (167 Nm)
Available Spindle: CAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
Rapid Feedrate (X axis): 2,127 ipm (54 m/min)
Rapid Feedrate (Y axis): 2,127 ipm (54 m/min)
Rapid Feedrate (Z axis): 2,127 ipm (54 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 185” x 304″ (4,680 mm x 7,710 mm)
Machine Height: 145″ (3,680 mm)
Standard Net Weight: 61,600 lb (28,000 kg)
Pallet Size: 31.5” x 31.5” (800 mm x 800 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 57.1” (1,450 mm)
Y-Axis Travel: 49.2” (1,250 mm)
Z-Axis Travel: 61” (1,550 mm)
Max Workpiece Swing: 59.06” (1,500 mm)
Max Workpiece Height: 59.06” (1,500 mm)
Maximum Work Load on the Pallet: 5,500 lb (2,500 kg)
Spindle Output Torque: 744 ft-lb (1,009 Nm)
Available Spindle: CAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
Rapid Feedrate (X axis): 2,127 ipm (54 m/min)
Rapid Feedrate (Y axis): 2,127 ipm (54 m/min)
Rapid Feedrate (Z axis): 2,127 ipm (54 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 185” x 304″ (4,680 mm x 7,710 mm)
Machine Height: 145″ (3,680 mm)
Standard Net Weight: 61,600 lb (28,000 kg)
