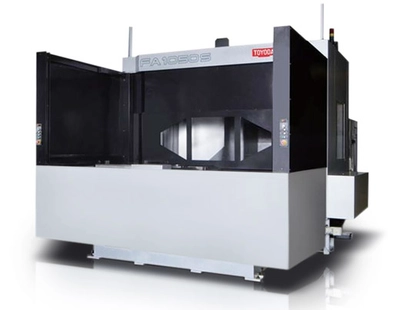

NEW TOYODA FA1050S
Overview
FA1050S

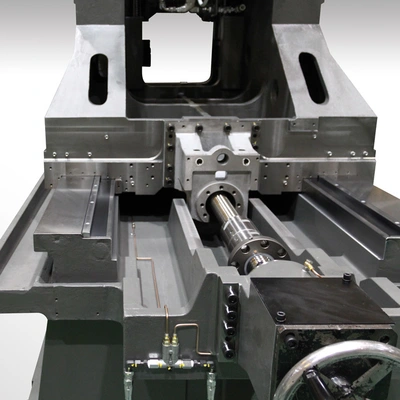

The FA1050S is a heavy-duty horizontal machining center featuring a 6,000 RPM direct-drive spindle, with options of a 6,000 RPM geared-head spindle or 15,000 RPM spindle, and a rapid feedrate of 944 ipm (24 m/min). The machine’s box guideways, robust column and bed, and large workpiece swing allow for powerful machining with high accuracy.
Specs
Pallet Size: 41.3″ x 41.3″ (1,050 mm x 1,050 mm)
Table Index: Rotary table (1 degree)
X-Axis Travel: 63” (1,600 mm)
Y-Axis Travel: 55.1” (1,400 mm)
Z-Axis Travel: 45.2” (1,150 mm)
Max Workpiece Swing: 72.83” (1,850 mm)
Max Workpiece Height: 61.02” (1,550 mm)
Maximum Work Load on the Pallet: 6,600 lb (3,000 kg)
Spindle Output Torque: 391 ft-lb (530 Nm)
Available Spindle: CAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm)
Available Spindle: CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Rapid Feedrate (X axis): 944 ipm (24 m/min)
Rapid Feedrate (Y axis): 944 ipm (24 m/min)
Rapid Feedrate (Z axis): 944 ipm (24 m/min)
Tool Storage Capacity: 60 Standard (120, 190, 240 Optional)
Standard Floor Space: 215″ x 320″ (5,460 mm x 8,140 mm)
Machine Height: 161″ (4,100 mm)
Standard Net Weight: 66,139 lb (30,000 kg)
Pallet Size: 41.3″ x 41.3″ (1,050 mm x 1,050 mm)
Table Index: Rotary table (1 degree)
X-Axis Travel: 63” (1,600 mm)
Y-Axis Travel: 55.1” (1,400 mm)
Z-Axis Travel: 45.2” (1,150 mm)
Max Workpiece Swing: 72.83” (1,850 mm)
Max Workpiece Height: 61.02” (1,550 mm)
Maximum Work Load on the Pallet: 6,600 lb (3,000 kg)
Spindle Output Torque: 123 ft-lb (167 Nm)
Available Spindle: CAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
Rapid Feedrate (X axis): 944 ipm (24 m/min)
Rapid Feedrate (Y axis): 944 ipm (24 m/min)
Rapid Feedrate (Z axis): 944 ipm (24 m/min)
Tool Storage Capacity: 60 Standard (120, 190, 240 Optional)
Standard Floor Space: 215″ x 320″ (5,460 mm x 8,140 mm)
Machine Height: 161″ (4,100 mm)
Standard Net Weight: 66,139 lb (30,000 kg)
Pallet Size: 41.3″ x 41.3″ (1,050 mm x 1,050 mm)
Table Index: Rotary table (1 degree)
X-Axis Travel: 63” (1,600 mm)
Y-Axis Travel: 55.1” (1,400 mm)
Z-Axis Travel: 45.2” (1,150 mm)
Max Workpiece Swing: 72.83” (1,850 mm)
Max Workpiece Height: 61.02” (1,550 mm)
Maximum Work Load on the Pallet: 6,600 lb (3,000 kg)
Spindle Output Torque: 744 ft-lb (1,009 Nm)
Available Spindle: CAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
Rapid Feedrate (X axis): 944 ipm (24 m/min)
Rapid Feedrate (Y axis): 944 ipm (24 m/min)
Rapid Feedrate (Z axis): 944 ipm (24 m/min)
Tool Storage Capacity: 60 Standard (120, 190, 240 Optional)
Standard Floor Space: 215″ x 320″ (5,460 mm x 8,140 mm)
Machine Height: 161″ (4,100 mm)
Standard Net Weight: 66,139 lb (30,000 kg)
