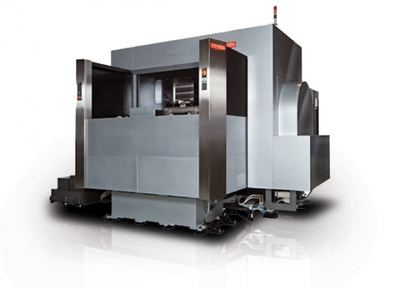

NEW TOYODA FH80M-5AXIS

Pallet Size: 31.5″ x 31.5″ (800 mm x 800 mm)

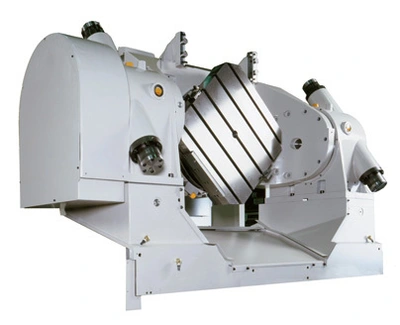

Trunnion Table Index Increment (A-axis): .0001 degree (-100° ~ +15°)
Trunnion Table Index Increment (B-axis): .0001 degree
X-Axis Travel: 43.3” (1,100 mm)
Y-Axis Travel: 45.2” (1,150 mm)
Z-Axis Travel: 45.2” (1,150 mm)
Max Workpiece Swing: 62.99” (1,600 mm)
Max Workpiece Height: 51.18” (1,300 mm)
Maximum Work Load on the Pallet: 2,204 lb (1,000 kg)
Spindle Output Torque: 391 ft-lb (530 Nm)
Available Spindle: CAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm)
Available Spindle: CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Rapid Feedrate (X axis): 590 ipm (15 m/min)
Rapid Feedrate (Y axis): 944 ipm (24 m/min)
Rapid Feedrate (Z axis): 944 ipm (24 m/min)
Tool Storage Capacity: 60 Standard (120, 190, 240 Optional)
Standard Floor Space: 208” x 268” (5,290 mm x 6,800 mm)
Machine Height: 152″ (3,865 mm)
Standard Net Weight: 77,162 lb (35,000 kg)
Pallet Size: 31.5″ x 31.5″ (800 mm x 800 mm)
Trunnion Table Index Increment (A-axis): .0001 degree (-100° ~ +15°)
Trunnion Table Index Increment (B-axis): .0001 degree
X-Axis Travel: 43.3” (1,100 mm)
Y-Axis Travel: 45.2” (1,150 mm)
Z-Axis Travel: 45.2” (1,150 mm)
Max Workpiece Swing: 62.99” (1,600 mm)
Max Workpiece Height: 51.18” (1,300 mm)
Maximum Work Load on the Pallet: 2,204 lb (1,000 kg)
Spindle Output Torque: 123 ft-lb (167 Nm)
Available Spindle: CAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
Rapid Feedrate (X axis): 590 ipm (15 m/min)
Rapid Feedrate (Y axis): 944 ipm (24 m/min)
Rapid Feedrate (Z axis): 944 ipm (24 m/min)
Tool Storage Capacity: 60 Standard (120, 190, 240 Optional)
Standard Floor Space: 208” x 268” (5,290 mm x 6,800 mm)
Machine Height: 152″ (3,865 mm)
Standard Net Weight: 77,162 lb (35,000 kg)
Pallet Size: 31.5″ x 31.5″ (800 mm x 800 mm)
Trunnion Table Index Increment (A-axis): .0001 degree (-100° ~ +15°)
Trunnion Table Index Increment (B-axis): .0001 degree
X-Axis Travel: 43.3” (1,100 mm)
Y-Axis Travel: 45.2” (1,150 mm)
Z-Axis Travel: 45.2” (1,150 mm)
Max Workpiece Swing: 62.99” (1,600 mm)
Max Workpiece Height: 51.18” (1,300 mm)
Maximum Work Load on the Pallet: 2,204 lb (1,000 kg)
Spindle Output Torque: 744 ft-lb (1,009 Nm)
Available Spindle: CAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
Rapid Feedrate (X axis): 590 ipm (15 m/min)
Rapid Feedrate (Y axis): 944 ipm (24 m/min)
Rapid Feedrate (Z axis): 944 ipm (24 m/min)
Tool Storage Capacity: 60 Standard (120, 190, 240 Optional)
Standard Floor Space: 208” x 268” (5,290 mm x 6,800 mm)
Machine Height: 152″ (3,865 mm)
Standard Net Weight: 77,162 lb (35,000 kg)
