NEW TOYODA AXIS
Overview
FA1050S-5Axis

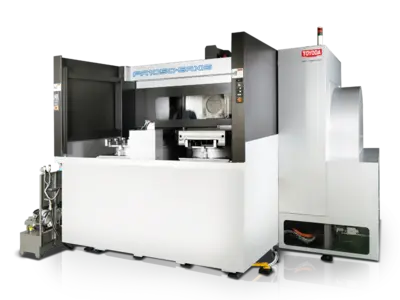

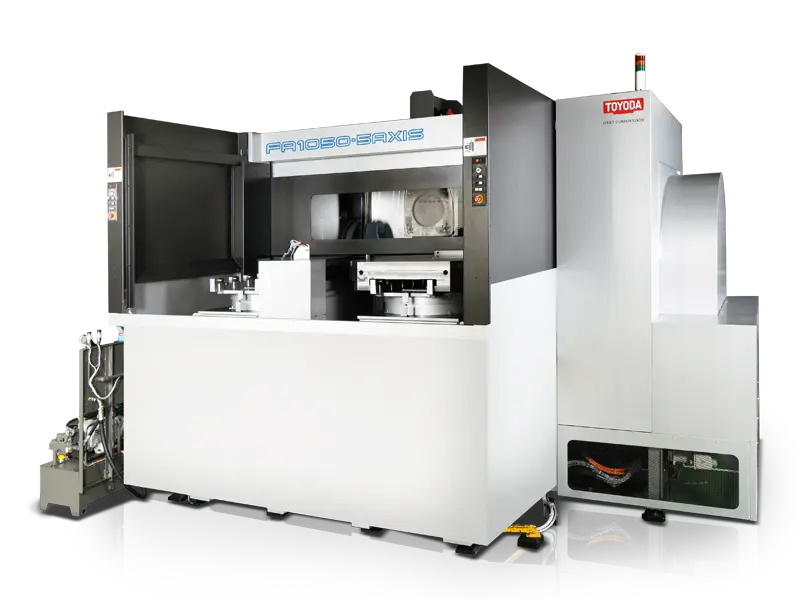

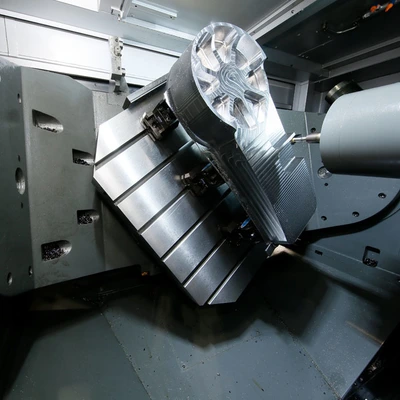

Five-axis machining is achieved with the FA1050S 5-Axis trunnion table. Its dual-drive mechanisms support heavy workpieces, while the high-resolution rotary encoders ensure precise positioning during simultaneous five-axis applications.
FERROUS SPECS
NON-FERROUS SPECS
HIGH TEMP ALLOY SPECS
ACCURACY
REEQUIREMENTS
Specs
Pallet Size: 41.3″ x 41.3″ (1,050 mm x 1,050 mm)
Trunnion Table Index Increment (A-axis): .0001 degree (-100° ~ +15°)
Trunnion Table Index Increment (B-axis): .0001 degree
X-Axis Travel: 59.1″ (1,500 mm)
Y-Axis Travel: 55.1″ (1,400 mm)
Z-Axis Travel: 45.2” (1,150 mm)
Max Workpiece Swing: 51.18” (1,300 mm)
Max Workpiece Height: 32.48” (825 mm)
Maximum Work Load on the Pallet: 4,400 lb (2,000 kg)
Spindle Output Torque: 391 ft-lb (530 Nm)
Available Spindle: CAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm)
Available Spindle: CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Rapid Feedrate (X axis): 590 ipm (15 m/min)
Rapid Feedrate (Y axis): 944 ipm (24 m/min)
Rapid Feedrate (Z axis): 944 ipm (24 m/min)
Tool Storage Capacity: 60 Standard (190, 240, 384 Optional)
Standard Floor Space: 276″ x 331″ (7,000 mm x 8,400 mm)
Machine Height: 161″ (4,100 mm)
Standard Net Weight: 112,436 lbs (51,000 kg)
Pallet Size: 41.3″ x 41.3″ (1,050 mm x 1,050 mm)
Trunnion Table Index Increment (A-axis): .0001 degree (-100° ~ +15°)
Trunnion Table Index Increment (B-axis): .0001 degree
X-Axis Travel: 59.1″ (1,500 mm)
Y-Axis Travel: 55.1” (1,400 mm)
Z-Axis Travel: 45.2” (1,150 mm)
Max Workpiece Swing: 51.18” (1,300 mm)
Max Workpiece Height: 32.48” (825 mm)
Maximum Work Load on the Pallet: 4,400 lb (2,000 kg)
Spindle Output Torque: 123 ft-lb (167 Nm)
Available Spindle: CAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
Rapid Feedrate (X axis): 590 ipm (15 m/min)
Rapid Feedrate (Y axis): 944 ipm (24 m/min)
Rapid Feedrate (Z axis): 944 ipm (24 m/min)
Tool Storage Capacity: 60 Standard (190, 240, 384 Optional)
Standard Floor Space: 276″ x 331″ (7,000 mm x 8,400 mm)
Machine Height: 161″ (4,100 mm)
Standard Net Weight: 112,436 lbs (51,000 kg)
Pallet Size: 41.3″ x 41.3″ (1,050 mm x 1,050 mm)
Trunnion Table Index Increment (A-axis): .0001 degree (-100° ~ +15°)
Trunnion Table Index Increment (B-axis): .0001 degree
X-Axis Travel: 59.1″ (1,500 mm)
Y-Axis Travel: 55.1” (1,400 mm)
Z-Axis Travel: 45.2” (1,150 mm)
Max Workpiece Swing: 51.18” (1,300 mm)
Max Workpiece Height: 32.48” (825 mm)
Maximum Work Load on the Pallet: 4,400 lb (2,000 kg)
Spindle Output Torque: 744 ft-lb (1,009 Nm)
Available Spindle: CAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
Rapid Feedrate (X axis): 590 ipm (15 m/min)
Rapid Feedrate (Y axis): 944 ipm (24 m/min)
Rapid Feedrate (Z axis): 944 ipm (24 m/min)
Tool Storage Capacity: 60 Standard (190, 240, 384 Optional)
Standard Floor Space: 276″ x 331″ (7,000 mm x 8,400 mm)
Machine Height: 161″ (4,100 mm)
Standard Net Weight: 112,436 lbs (51,000 kg)
