NEW TOYODA FH1250SX
Overview
FH1250SX

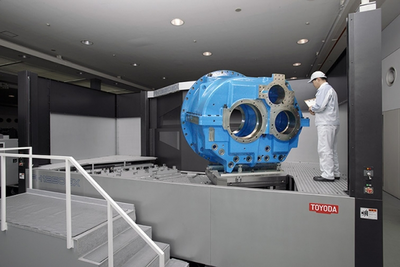

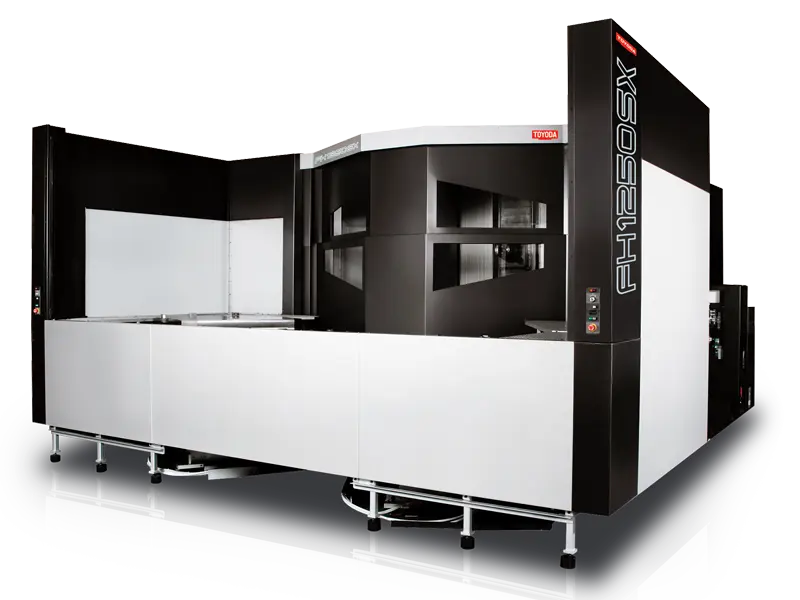

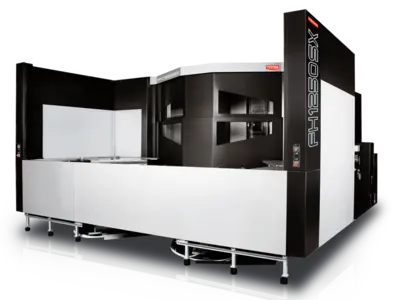

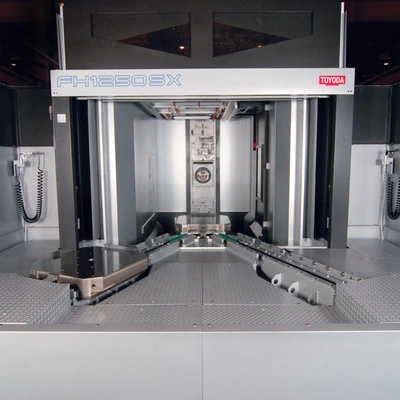

The FH1250SX is a powerful, high-speed horizontal machining center featuring a 6,000 RPM spindle, with options of an 8,000 RPM or 15,000 RPM high-torque spindle, and a rapid feedrate of 1,654 ipm (42 m/min). This machine has cylindrical roller guides for increased speed, and dual ballscrew drive on the Y and Z axes and a Meehanite cast iron base for maximum rigidity.
FERROUS SPECS
NON-FERROUS SPECS
HIGH TEMP ALLOY SPECS
ACCURACY
REEQUIREMENTS
Specs
Pallet Size: 49.2″ x 49.2″ (1,250 mm x 1,250 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 86.6″ (2,200 mm)
Y-Axis Travel: 63” (1,600 mm)
Z-Axis Travel: 72.8″ (1,850 mm)
Max Workpiece Swing: 84.49” (2,400 mm)
Max Workpiece Height: 70.87” (1,800 mm)
Maximum Work Load on the Pallet: 11,000 lb (5,000 kg)
Spindle Output Torque: 391 ft-lb (530 Nm)
Available Spindle: CAT#50 50HP 15,000 RPM (Wide Range 530 Nm)
Available Spindle: CAT#50 60HP 6,000 RPM (Geared Head 1,305 Nm)
Rapid Feedrate (X axis): 1,654 ipm (42 m/min)
Rapid Feedrate (Y axis): 1,654 ipm (42 m/min)
Rapid Feedrate (Z axis): 1,654 ipm (42 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 244″ x 389″ (6,200 mm x 9,900 mm)
Machine Height: 178″ (4,520 mm)
Standard Net Weight: 105,821 lb (48,000 kg)
Pallet Size: 49.2″ x 49.2″ (1,250 mm x 1,250 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 86.6″ (2,200 mm)
Y-Axis Travel: 63” (1,600 mm)
Z-Axis Travel: 72.8″ (1,850 mm)
Max Workpiece Swing: 84.49” (2,400 mm)
Max Workpiece Height: 70.87” (1,800 mm)
Maximum Work Load on the Pallet: 11,000 lb (5,000 kg)
Spindle Output Torque: 123 ft-lb (167 Nm)
Available Spindle: CAT#50 30HP 15,000 RPM (0-15,000 in 2.6 sec)
Rapid Feedrate (X axis): 1,654 ipm (42 m/min)
Rapid Feedrate (Y axis): 1,654 ipm (42 m/min)
Rapid Feedrate (Z axis): 1,654 ipm (42 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 244″ x 389″ (6,200 mm x 9,900 mm)
Machine Height: 178″ (4,520 mm)
Standard Net Weight: 105,821 lb (48,000 kg)
Pallet Size: 49.2″ x 49.2″ (1,250 mm x 1,250 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 86.6″ (2,200 mm)
Y-Axis Travel: 63” (1,600 mm)
Z-Axis Travel: 72.8″ (1,850 mm)
Max Workpiece Swing: 84.49” (2,400 mm)
Max Workpiece Height: 70.87” (1,800 mm)
Maximum Work Load on the Pallet: 11,000 lb (5,000 kg)
Spindle Output Torque: 744 ft-lb (1,009 Nm)
Available Spindle: CAT#50 50HP 8,000 RPM (High Torque 1,009 Nm)
Rapid Feedrate (X axis): 1,654 ipm (42 m/min)
Rapid Feedrate (Y axis): 1,654 ipm (42 m/min)
Rapid Feedrate (Z axis): 1,654 ipm (42 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 244″ x 389″ (6,200 mm x 9,900 mm)
Machine Height: 178″ (4,520 mm)
Standard Net Weight: 105,821 lb (48,000 kg)
