NEW TOYODA AXIS
Overview

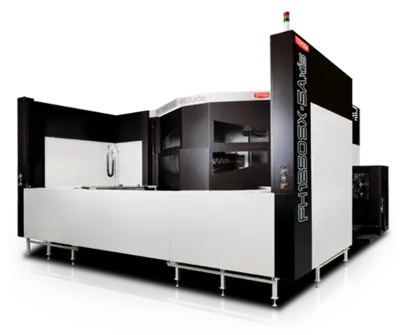

FH1250SX-5Axis
The FH1250SX 5-axis is a five-axis horizontal machining center designed for complex, large part machining. It features a 15,000 RPM integral tilting spindle and rapid feedrates of 1,260 ipm (32 m/min) on the X and Y axes and 1,654 ipm (42 m/min) on the Z axis.
FERROUS SPECS
NON-FERROUS SPECS
HIGH TEMP ALLOY SPECS
ACCURACY
REEQUIREMENTS
Specs
Pallet Size: 49.2″ x 49.2″ (1,250 mm x 1,250 mm)

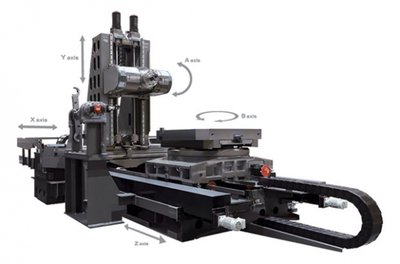

Tilt Spindle (A-axis): -100° ~ +45°
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 86.6″ (2,200 mm)
Y-Axis Travel: 63” (1,600 mm)
Z-Axis Travel: 72.8″ (1,850 mm)
Max Workpiece Swing: 84.49” (2,400 mm)
Max Workpiece Height: 70.87” (1,800 mm)
Maximum Work Load on the Pallet: 11,000 lb (5,000 kg)
Spindle Output Torque: 295 ft-lb (400 Nm)
Available Spindle: CAT#50 50HP 15,000 RPM (High Torque 400 Nm)
Rapid Feedrate (X axis): 1,260 ipm (32 m/min)
Rapid Feedrate (Y axis): 1,260 ipm (32 m/min)
Rapid Feedrate (Z axis): 1,654 ipm (42 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 249″ x 394″ x 178″ (6,320 mm x 10,000 mm x 4,520 mm)
Machine Height: 178″ (4,520 mm)
Standard Net Weight: 109,100 lb (49,500 kg)
Pallet Size: 49.2″ x 49.2″ (1,250 mm x 1,250 mm)
Tilt Spindle (A-axis): -100° ~ +45°
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 86.6″ (2,200 mm)
Y-Axis Travel: 63” (1,600 mm)
Z-Axis Travel: 72.8″ (1,850 mm)
Max Workpiece Swing: 84.49” (2,400 mm)
Max Workpiece Height: 70.87” (1,800 mm)
Maximum Work Load on the Pallet: 11,000 lb (5,000 kg)
Spindle Output Torque: 295 ft-lb (400 Nm)
Available Spindle: CAT#50 50HP 15,000 RPM (High Torque 400 Nm)
Rapid Feedrate (X axis): 1,260 ipm (32 m/min)
Rapid Feedrate (Y axis): 1,260 ipm (32 m/min)
Rapid Feedrate (Z axis): 1,654 ipm (42 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 249″ x 394″ x 178″ (6,320 mm x 10,000 mm x 4,520 mm)
Machine Height: 178″ (4,520 mm)
Standard Net Weight: 109,100 lb (49,500 kg)
Pallet Size: 49.2″ x 49.2″ (1,250 mm x 1,250 mm)
Tilt Spindle (A-axis): -100° ~ +45°
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 86.6″ (2,200 mm)
Y-Axis Travel: 63” (1,600 mm)
Z-Axis Travel: 72.8″ (1,850 mm)
Max Workpiece Swing: 84.49” (2,400 mm)
Max Workpiece Height: 70.87” (1,800 mm)
Maximum Work Load on the Pallet: 11,000 lb (5,000 kg)
Spindle Output Torque: 295 ft-lb (400 Nm)
Available Spindle: CAT#50 50HP 15,000 RPM (High Torque 400 Nm)
Rapid Feedrate (X axis): 1,260 ipm (32 m/min)
Rapid Feedrate (Y axis): 1,260 ipm (32 m/min)
Rapid Feedrate (Z axis): 1,654 ipm (42 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 249″ x 394″ x 178″ (6,320 mm x 10,000 mm x 4,520 mm)
Machine Height: 178″ (4,520 mm)
Standard Net Weight: 109,100 lb (49,500 kg)
