NEW TOYODA FH1250SW
Overview
FH1250SW

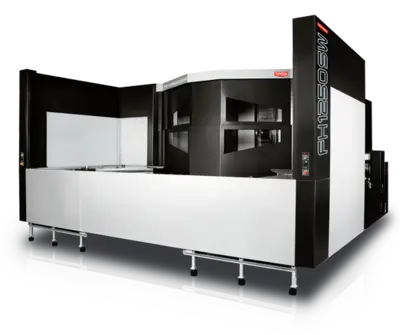

The FH1250SW is a quill-spindle horizontal machining center designed for heavy-duty operations. This machine’s unique 3,000 RPM spindle is ideal for boring and deep drilling, allowing workpieces previously requiring two operations to be completed on a single machine.
FERROUS SPECS
NON-FERROUS SPECS
HIGH TEMP ALLOY SPECS
ACCURACY
REEQUIREMENTS
Specs
Pallet Size: 49.2″ x 49.2″ (1,250 mm x 1,250 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 86.6″ (2,200 mm)
Y-Axis Travel: 59” (1,500 mm)
Z-Axis Travel: 72.8″ (1,850 mm)
W-Axis Travel: 21.6″ (550 mm)
Max Workpiece Swing: 84.49” (2,400 mm)
Max Workpiece Height: 70.87” (1,800 mm)
Maximum Work Load on the Pallet: 11,000 lb (5,000 kg)
Spindle Output Torque: 968 ft-lb (1,313 Nm)

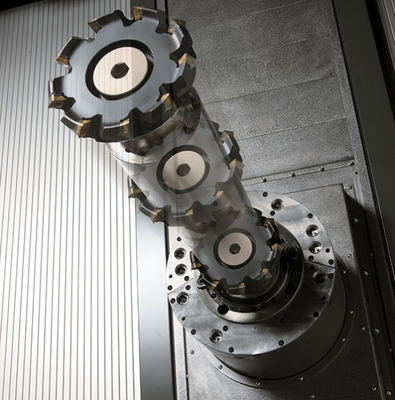

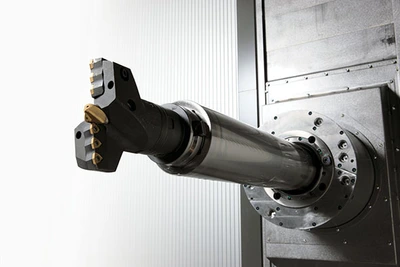

Available Spindle: CAT#50 60HP 3,000 RPM (1,313 Nm) 5.1″ x 21.65″ Quill Boring Bar
Rapid Feedrate (X axis): 1,260 ipm (32 m/min)
Rapid Feedrate (Y axis): 1,260 ipm (32 m/min)
Rapid Feedrate (Z axis): 1,654 ipm (42 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 293″ x 390″ (7,450 mm x 9,900 mm)
Machine Height: 178″ (4,520 mm)
Standard Net Weight: 109,129 lb (49,500 kg)
Pallet Size: 49.2″ x 49.2″ (1,250 mm x 1,250 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 86.6″ (2,200 mm)
Y-Axis Travel: 59” (1,500 mm)
Z-Axis Travel: 72.8″ (1,850 mm)
W-Axis Travel: 21.6″ (550 mm)
Max Workpiece Swing: 84.49” (2,400 mm)
Max Workpiece Height: 70.87” (1,800 mm)
Maximum Work Load on the Pallet: 11,000 lb (5,000 kg)
Spindle Output Torque: 968 ft-lb (1,313 Nm)
Available Spindle: CAT#50 60HP 3,000 RPM (1,313 Nm) 5.1″ x 21.65″ Quill Boring Bar
Rapid Feedrate (X axis): 1,260 ipm (32 m/min)
Rapid Feedrate (Y axis): 1,260 ipm (32 m/min)
Rapid Feedrate (Z axis): 1,654 ipm (42 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 293″ x 390″ (7,450 mm x 9,900 mm)
Machine Height: 178″ (4,520 mm)
Standard Net Weight: 109,129 lb (49,500 kg)
Pallet Size: 49.2″ x 49.2″ (1,250 mm x 1,250 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 86.6″ (2,200 mm)
Y-Axis Travel: 59” (1,500 mm)
Z-Axis Travel: 72.8″ (1,850 mm)
W-Axis Travel: 21.6″ (550 mm)
Max Workpiece Swing: 84.49” (2,400 mm)
Max Workpiece Height: 70.87” (1,800 mm)
Maximum Work Load on the Pallet: 11,000 lb (5,000 kg)
Spindle Output Torque: 968 ft-lb (1,313 Nm)
Available Spindle: CAT#50 60HP 3,000 RPM (1,313 Nm) 5.1″ x 21.65″ Quill Boring Bar
Rapid Feedrate (X axis): 1,260 ipm (32 m/min)
Rapid Feedrate (Y axis): 1,260 ipm (32 m/min)
Rapid Feedrate (Z axis): 1,654 ipm (42 m/min)
Tool Storage Capacity: 60 Standard (121 Optional)
Standard Floor Space: 293″ x 390″ (7,450 mm x 9,900 mm)
Machine Height: 178″ (4,520 mm)
Standard Net Weight: 109,129 lb (49,500 kg)
