NEW TOYODA FH1600SW-I
Overview
FH1600SW-i

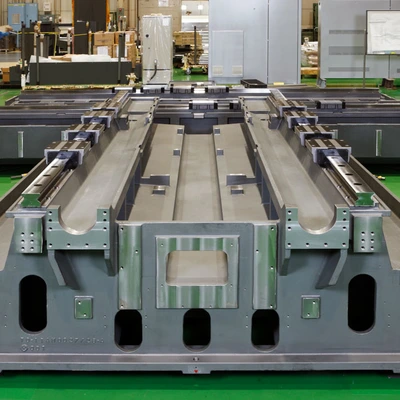

Toyoda’s FH1600SW-i horizontal machining center features the largest work envelope in its class with a maximum swing of ⌀126″ (⌀3,200 mm) and a workpiece height of 83″ (2,100 mm). Engineered for heavy cutting, the FH1600SW-i’s 5.9″ (150 mm) diameter quill spindle allows for powerful cutting with high material removal rates.
FH1600SWI
FERROUS SPECS
NON-FERROUS SPECS
HIGH TEMP ALLOY SPECS
ACCURACY
REEQUIREMENTS
Specs
Pallet Size: 63″ x 49.2″ (1,600 mm x 1,250 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 118.1″ (3,000 mm)
Y-Axis Travel: 74.8″ (1,900 mm)
Z-Axis Travel: 82.6″ (2,100 mm)
W-Axis Travel: 29.5 (750 mm)
Max Workpiece Swing: 126” (3,200 mm)
Max Workpiece Height: 82.6” (2,100 mm)
Maximum Work Load on the Pallet: 17,600 lbs (8,000 kg)
Spindle Output Torque: 1,560 ft-lb (2,115 Nm)
Available Spindle: CAT#50 74HP 4,000 RPM (2,115 Nm) 5.9″ x 29.53″ Quill Boring Bar
Rapid Feedrate (X axis): 1,378 ipm (35 m/min)
Rapid Feedrate (Y axis): 1,575 ipm (40 m/min)
Rapid Feedrate (Z axis): 1,575 ipm (40 m/min)
Rapid Feedrate (W-axis): 787 ipm (20 m/min)
Tool Storage Capacity: One Hundred Twenty (120)
Standard Floor Space: 398″ x 575″ (10,100 mm x 14,600 mm)
Machine Height: 178″ (4,520 mm)
Standard Net Weight: 165,350 lb (75,000 kg)
Pallet Size: 63″ x 49.2″ (1,600 mm x 1,250 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 118.1″ (3,000 mm)
Y-Axis Travel: 74.8″ (1,900 mm)
Z-Axis Travel: 82.6″ (2,100 mm)
W-Axis Travel: 29.5 (750 mm)
Max Workpiece Swing: 126” (3,200 mm)
Max Workpiece Height: 82.6” (2,100 mm)mm)
Maximum Work Load on the Pallet: 17,600 lbs (8,000 kg)
Spindle Output Torque: 1,560 ft-lb (2,115 Nm)
Available Spindle: CAT#50 74HP 4,000 RPM (2,115 Nm) 5.9″ x 29.53″ Quill Boring Bar
Rapid Feedrate (X axis): 1,378 ipm (35 m/min)
Rapid Feedrate (Y axis): 1,575 ipm (40 m/min)
Rapid Feedrate (Z axis): 1,575 ipm (40 m/min)
Rapid Feedrate (W-axis): 787 ipm (20 m/min)
Tool Storage Capacity: One Hundred Twenty (120)
Standard Floor Space: 398″ x 575″ (10,100 mm x 14,600 mm)
Machine Height: 178″ (4,520 mm)
Standard Net Weight: 165,350 lb (75,000 kg)
Pallet Size: 63″ x 49.2″ (1,600 mm x 1,250 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 118.1″ (3,000 mm)
Y-Axis Travel: 74.8″ (1,900 mm)
Z-Axis Travel: 82.6″ (2,100 mm)
W-Axis Travel: 29.5 (750 mm)
Max Workpiece Swing: 126” (3,200 mm)
Max Workpiece Height: 82.6” (2,100 mm)
Maximum Work Load on the Pallet: 17,600 lbs (8,000 kg)
Spindle Output Torque: 1,560 ft-lb (2,115 Nm)
Available Spindle: CAT#50 74HP 4,000 RPM (2,115 Nm) 5.9″ x 29.53″ Quill Boring Bar
Rapid Feedrate (X axis): 1,378 ipm (35 m/min)
Rapid Feedrate (Y axis): 1,575 ipm (40 m/min)
Rapid Feedrate (Z axis): 1,575 ipm (40 m/min)
Rapid Feedrate (W-axis): 787 ipm (20 m/min)
Tool Storage Capacity: One Hundred Twenty (120)
Standard Floor Space: 398″ x 575″ (10,100 mm x 14,600 mm)
Machine Height: 178″ (4,520 mm)
Standard Net Weight: 165,350 lb (75,000 kg)
