NEW TOYODA 312
Overview
RB312

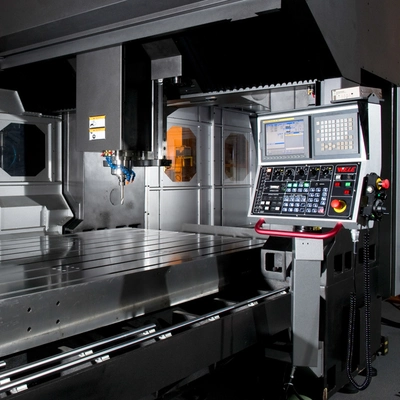

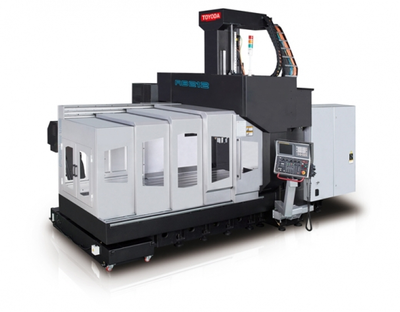

The RB312 is a heavy duty, double column, fixed rail bridge machine. This bridge features roller guides, a hydraulic counterbalance system on the headstock, and a two-speed, geared spindle.
Specs
Table Size: 118″ x 43.3″ (3,000 mm x 1,100 mm)
X-Axis Travel: 120.5″ (3,060 mm)
Y-Axis Travel: 47.2″ (1,200 mm)
Z-Axis Travel: 31.5″ (800 mm)
Distance from Spindle Nose to Table Top: 5.9″ to 37.4″ (150 mm to 950 mm)
Distance Between Columns: 51.2″ (1,300 mm)
Maximum Table Load: 9,900 lb (4,500 kg)
Linear Position Accuracy: ± 0.0006″ (0.015 mm) full travel
Linear Repeatability: Linear Repeatability
Coolant Tank Capacity: 132 gallon
Air Source: 90 psi @ 3.78 CFM
Total power Required: AC 220V ±10% (60 kVA)
