NEW TOYODA SB316
Overview
SB316

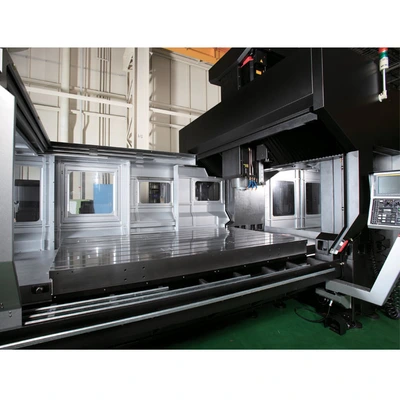

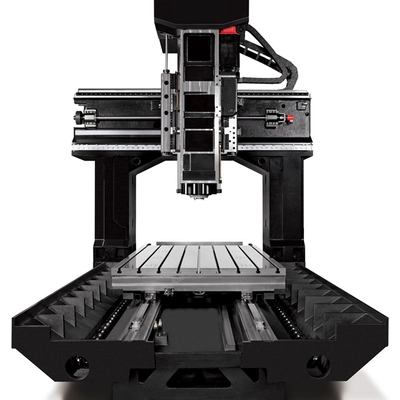

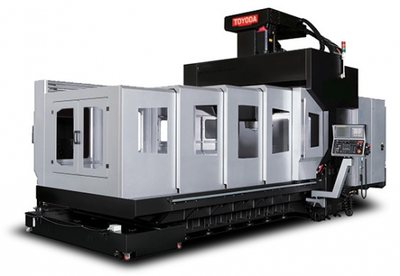

The SB316 is fixed rail bridge machine designed for heavy cutting applications. This machine features roller guides, a hydraulic counterbalance system on the headstock, and a powerful spindle. These features allow for highly precise and accurate cuts without sacrificing speed.
The SB316YM model has extended Y-axis travel with five-face machining capabilities to allow for the machining of complex workpieces. This machine features automatic tool changes in the vertical and horizontal orientations and offers automatic clamping of the headstock. Headstock options include 30 degree, 90 degree, extension, and manual universal.
CASE STUDIES
Read: Rigidity, Reliability of Machines Aid In-House Production
“The first is dependability,” explains Bob Standridge, owner of Standridge Color Corporation on their Toyoda bridge mills. “Their uptime is better. The second factor is dimensional stability. It might take three cuts on another machine to remove the same amount of metal as one cut on a Toyoda.”
Specs
Table Size: 118″ x 59″ (3,000 mm x 1,500 mm)
X-Axis Travel: 120.5″ (3,060 mm)
Y-Axis Travel: 63″ (1,600 mm)
Y-axis Travel for -YM Configuration: 90.5″ (2,300 mm)
Z-Axis Travel: 31.5″ (800 mm)
Optional Z-axis Travel: 39.4″ (1,000 mm)
Distance from Spindle Nose to Table Top: 7.9″ to 39.4″ (200 mm to 1,000 mm)
Distance Between Columns: 66.9″ (1,700 mm)
Maximum Table Load: 22,000 lb (10,000 kg)
Linear Position Accuracy: ± 0.0004″ (0.01 mm) full travel
Linear Repeatability: ± 0.0001″ (0.003 mm)
Coolant Tank Capacity: 132 gallon
Air Source: 90 psi @ 3.78 CFM
Total power Required: AC 220V ±10% (60 kVA)
