NEW TOYODA YM
Overview
LB325 YM

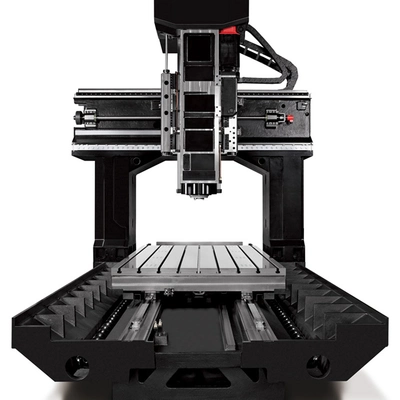

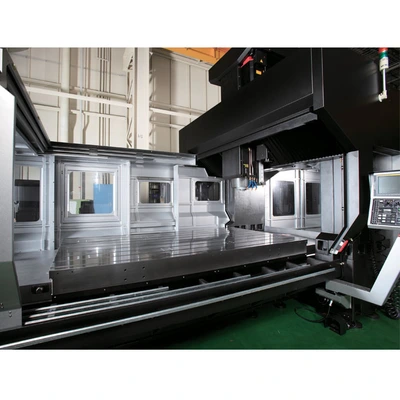

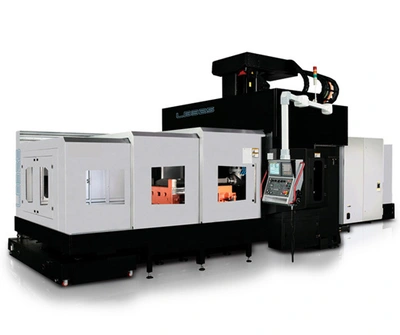

The LB325 is a double column, fixed rail bridge machine designed for heavy cutting applications. It features a robust geared-head spindle, a hydraulic counterbalance system on the headstock, and a Meehanite cast iron base. These features allow the machine to excel in the heaviest of cuts.
The LB325YM model has extended Y-axis travel with five-face machining capabilities to allow for the machining of complex workpieces. This machine features automatic tool changes in the vertical and horizontal orientations and offers automatic clamping of the headstock. Headstock options include 30 degree, 90 degree, extension, and manual universal.
Specs
Table Size: 118″ x 94.5″ (3,000 mm x 2,400 mm)
X-Axis Travel: 120.5″ (3,060 mm)
Y-axis Travel: 125.9″ (3,200 mm)
Z-Axis Travel: 31.5″ (800 mm)
Optional Z-axis Travel: 39.4″ (1,000 mm), 47.2″ (1,200 mm), 55.1″ (1,400 mm)
Distance from Spindle Nose to Table Top: 7.9″ to 39.4″ (200 mm to 1,000 mm)
Distance Between Columns: 106.3″ (2,700 mm)
Maximum Table Load: 26,450 lb (12,000 kg)
Linear Position Accuracy: ± 0.0006″ (0.015 mm) full travel
Linear Repeatability: ± 0.0001″ (0.003 mm)
Coolant Tank Capacity: 132 gallon
Air Source: 90 psi @ 3.78 CFM
Total power Required: AC 220V ±10% (60 kVA)
