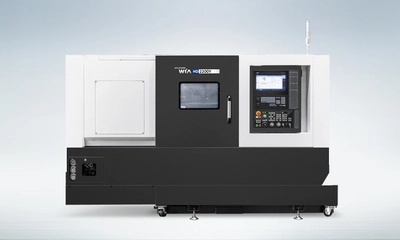

NEW HYUNDAI WIA HD2200SY
Overview
Features
Box guideways for enhancement of cutting capability
One-piece and 30° degree slanted bed assures high-rigidity in structure
Minimized thermal displacement through stabilized machine component
Complex machining is possible with BMT55P turret transferred by wedge type Y-axis
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 11.8″ in
Max Turning Length: 24″ in
Chuck Size: 8″ in
Sub-Spindle: 5″ in
Driving Method: Belt
Spindle RPM: 4,000 r/min
Sub Spindle RPM: 6000 r/min
Spindle Output (max/cont.): 25/20 hp
Sub Spindle Output (max/cont.): 7.4/5 hp
Spindle Torque (max/cont.): 152/123 ft.lbs
Sub Spindle Torque (max/cont.): 34.4/17.3 ft.lbs
Travel(X/Y/Z): 8.5/4.3/26.8 in
Rapid Travel(X/Y/Z): 945/394/1181 in/min
Slide Type: BOX
No. of Tools: 12 EA
Tool Size (ID/OD): 1″/1.5″ in
Milling Tool Speed: 6,000 r/min
