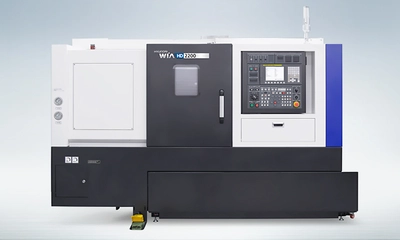

NEW HYUNDAI WIA HD2200MC
Overview
Features
45° slanted one-piece rigid bed structure
Minimal thermal distortion
User-friendly structure for high productivity
Best in class rapid traverse rate : 30m/min (Z-axis)
Reliable, high speed servo turret: 0.12sec/step
Box guide ways for heavy-duty cutting
Compact design, able to install within a limited space.
Ergonomic design for convenient access to chuck and tool
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 11.8 in
Max Turning Length: 17.8 in
Chuck Size: 10″ in
Driving Method: Belt
Spindle RPM: 3,500 r/min
Spindle Output (max/cont.): 25/20 hp
Spindle Torque (max/cont.): 298 / 181 ft.lb
Travel(X/Z): 8.5/19 in
Rapid Travel(X/Z): 945/1181 in/min
Slide Type: BOX
No. of Tools: 12 EA
Tool Size (ID / OD): 1″ / 1.5″ in
