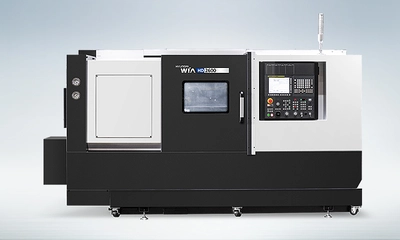

NEW HYUNDAI WIA HD2600LE

Turret
The turret of HD2600/3100 series is joined with a high performance AC servo motor, improving machining reliability. The 3-piece coupling shows excellent performance in indexing. Powerful hydraulic tool clamping minimizes tool tip deviation caused by workload.
Spindle Ideal for Heavy Cutting
The HD2600 and HD3100 feature torque of 734N・m(541.4lbf・ft) and 1,123N・m(828.3lbf・ft), respectively, ensuring excellent performance in heavy-duty cutting, interrupted cutting, and so on (specially designed for extra heavy workpiece).In particular, the HD3100 features a gear spindle as an option [gear: 1,613N・m(1,189.7lbf・ft) torque], thus meeting customer needs for a stronger heavy-duty cutting function.
Ribstar-type Belt
With the previous stick-slip problems in low-speed sections now resolved, machining precision and noise suppression have been improved.
Tail Stock
The HD2600 and HD3100 are fitted with tailstocks as a standard for excellent machining quality. In addition, the travel distance of quill can be as long as 120mm(4.7′′), thus expanding the support area.
Optimal Structural Analysis
Structural analysis was applied to the design of the machine to increase the tool post body and reduce the machine’s height so as to maintain the bed’s dynamic rigidity even during heavy-duty cutting.In addition, the HD2600/3100’s bed slope is pitched at 30 degrees to ensure more stable machining.
Features
Box guide-ways for heavy-duty cutting
Stabilized unit structure to minimize thermal displacement
User convenient structure for high productivity
Excellent rapid traverse rate: 30m/min [1,181ipm] (Z-axis)
High-rigidity and high-speed servo turret (Expanded disk width)
Specifications (metric)
Specifications are subject to change without notice for quality improvement.

In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.

In case of any further information, please refer to the machine catalog.
