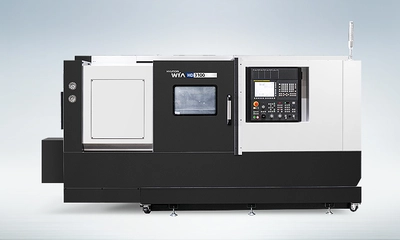

NEW HYUNDAI WIA HD3100LM
Overview
Features
Box guideways for heavy-duty cutting
Stabilized unit structure to minimize thermal displacement
User convenient structure for high productivity
Excellent rapid traverse rate: 30m/min [1,181ipm] (Z-axis)
High-rigidity and high-speedd servo turret (Expanded disk width)
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 420 mm
Max Turning Length: 1,260 740
Chuck Size: 12″ inch
Driving Method: Belt
Spindle RPM: 2,800 r/min
Spindle Output (max/cont.): 26/18.5 kW
Spindle Torque (max/cont.): 1,123/657 N.m
Travel(X/Z): 265/830 mm
Rapid Travel(X/Z): 24/30 m/min
Slide Type: BOX
No. of Tools: 12 EA
Tool Size (ID/OD): 25/50 mm
