NEW HYUNDAI WIA L2600LY
Overview

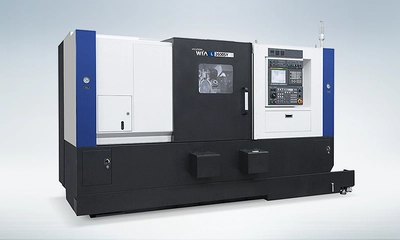

Hyundai Wia L2600LY
Features
Cycle time reducing structure for maximum productivity

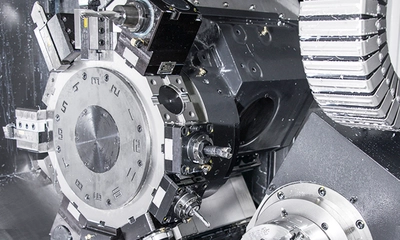

Multi-tasking operation with wedge type Y-axis BMT65P turret
Integrated processing through synchronized control of Main/Sub spindle (“S” Type)

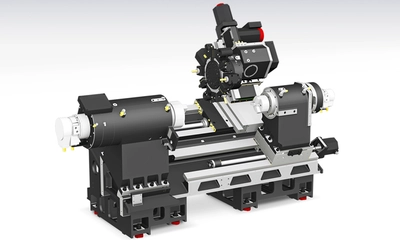

High performance heavy duty cutting enabled with box guideways
Improved maintenance through locating lubrication mechanisms on the front of machine
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specifications
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Max Turning Dia: 420 mm
Max Turning Length: 1,280 mm
Chuck Size: 10″ Main 10″
Sub 6″
Driving Method: Built in
Spindle RPM: 5,000 r/min
Spindle Output (max/cont.): 15/22 kW
Spindle Torque (max/cont.): 409/599 N.m
Travel(X/Y/Z): 265/120/1,350
Rapid Travel(X/Y/Z): 30/10/30
Slide Type: BOX
No. of Tools: 12 EA
Tool Size (ID/OD): 25/50 mm
Milling Tool Speed: 5,000 r/min
