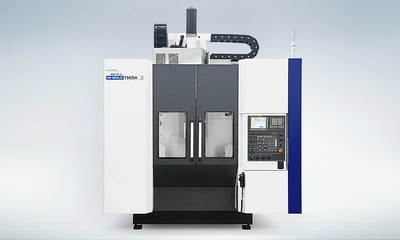

NEW HYUNDAI WIA HI-MOLD750/5A
Overview
Features
Double column structure
Highly accurate main spindles with ultra-precise angular contact bearings
Built-in ultra-high-speed (15,000rpm) main spindle for the highest quality of molds

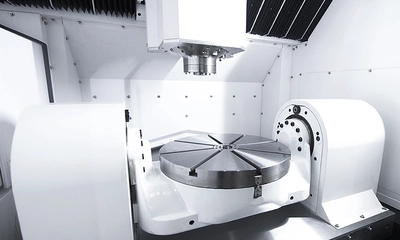

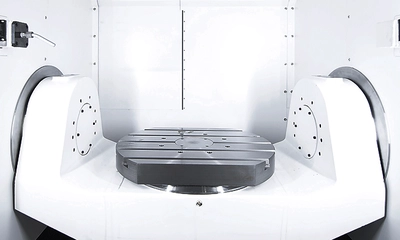

Built-in 5-axis table bed to satisfy various processing needs
Hyundai WIA mold package delivers optimal processing of mold parts
Specs
Table Size: Ø24.8″x19.7″ inch
Max. Load Capacity: 1,102 lb
Spindle Driving Method: Built in
Spindle Taper: HSK-A63
Spindle RPM: 15,000 r/min
Spindle Power: 33/29 HP
Spindle Torque: 121.7/70 lbf.ft
Travel(X/Y/Z): 25.6″/30.1″/20″ inch
Travel(A/C): 150°(+30°~-120°)/360° deg
Rapid Feed Rate(X/Y/Z): 50/50/50 m/min
Rapid Feed Rate(A/C): 40/50 r/min
Slide Type: LM

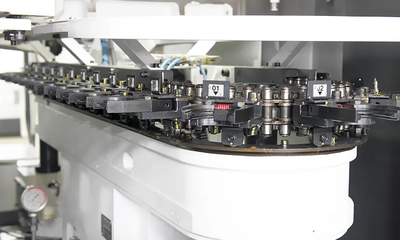

No. of Tools: 30 EA
Tool Change Time
(Chip To Chip): 4.5 sec
CNC: F31iA5
