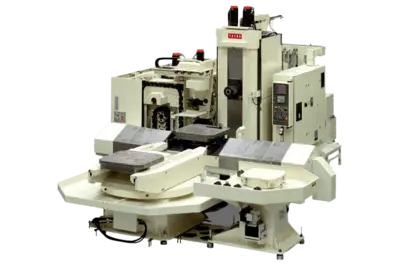

NEW YASDA YBM10T

YASDA Precision Center YBM 10T is a large size horizontal machining center, developing a new area for high speed and high precision machining of a large and heavy components. The high speed positioning of 45m/min. is achieved employing twin ball screws for each linear axis remaining YASDA’s traditional high positioning accuracy and the machine further increased its rigidity. Excellent capability is achieved for high precision machining of box shape components and large size die and molds.
FEATURES & BENEFITS
Trunnion Style 5 Axis Horizontal Machining Center
Through Hardened Box Guide Ways
Optical Scale Feedback on X/Y/Z axis
Twin Ball Screws
YBM 8T-63TT on X/Y Axis
YBM 10T-100TT on X/Y/Z Axis
Self-adjusting Spindle Preload System
Curvic Coupled Pallet Clamping with Air Blast
Thermal Distortion Stabilization
H-frame Z-axis Steel Bed for Heat Distribution for Long Term Accuracy
Double Walled and Ribbed Y-axis Column with Minimal Axial Yaw
72 Tooth Curvic Coupling Pallet Clamping with Air Blast
Rigid Machine Structure for Machining Various Material Types
Optical Scale Feedback for Precise Positioning
Probing Systems
OPTIONS
High-torque Spindle
High-speed Spindle
FMS Integration
Expandable Preload Stations
FANUC Functions
