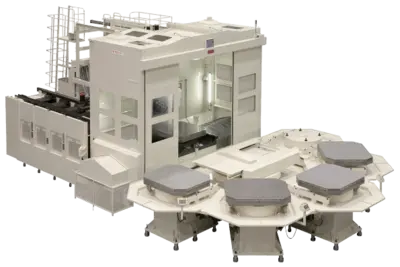

NEW YASDA 15T
Overview
High accuracy and durability of YBM 15T is realized by outstandingly rigid mechanical components, for example, bed and column designed symmetric to control thermal deformation, hardened die steel guide ways assuring durability of long strokes, highly rigid feed drive system with big diameter twin ball screws. These are improving positioning accuracy and machine supports machining cutters a lot and helps minimizing process running cost.
FEATURES & BENEFITS
Double Feed System with Quill Spindle and Column Feed
Thermal Distortion Stabilizing Systems
High Performance Spindle with Pre-load Self-adjusting System
Twin Ball Screws Drive System
High Speed and Highly Accurate Positioning of Heavy Components
Outstanding Turn Boring Capability Equivalent to Jig Borer Machine
YASDA HAS-3 Systems
OPTIONS
YASDA MiPS
High-torque Spindle
High-speed Spindle
Automatic Tool Stocker (with ATC)
Thermal Distortion Stabilizing System
Preload Stand (PLS)
FANUC Functions
Specs
Travel: 2100mm
Y-axis travel (Vertical movement of spindle head): 1500mm
Z-axis travel (Cross movement of Column): 1500mm
W-axis travel(Cross movement of quill): 300mm
Table: 1500x1500mm
Table loading capacity: 12000kg
Spindle: 2800min-1[10000min-1]
Spindle taper hole: 7/24 taper,No.50(BT50)
Automatic tool changer: 60 tools[90〜450]
APC/PLS: 2nd page / [5th page ]
NC equipment: FANUC 31i-MODEL B5
