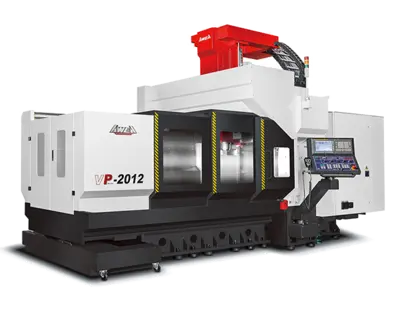

NEW YAMA SEIKI VP-2012
Overview

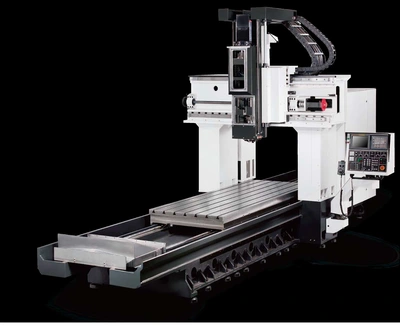

Ultra Performance Bridge Type Machining Center
Representing YAMA SEIKI’s 「 The royal family of bridge machines 」 of mature manufacturing abilities and advanced technology of innovation, the VP series bridge type vertical machining centers combine advanced concept of design and stable machine structure provide you the ultimate machining performance at the most compact floor space. It is one of the most cost-effective models. All series are adopted with modular design, the full product line provides you high performance, high productivity machining solutions to meet your demands of today and tomorrow. It can be broadly applied in the automotive, precision die & mold, aerospace, and energy industries., etc.
VP series Product Map ( X / Y / Z axis travel )

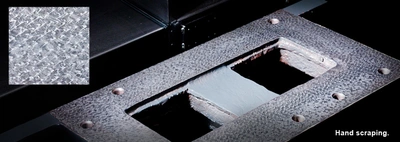

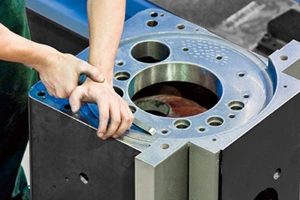

Thanks to our advanced developing skills and strict assembly process, gives the VP series ultra performance bridge type vertical machining center optimum rigidity, accuracy and efficiency.
The modular spindle design provides cutting flexibility for various working conditions.
High rigidity linear guide ways on the X, Y axes.
The Z-axis is adopted with high rigidity box way which is hardened and precisely ground suitable for heavy-duty cutting conditions.
( Opt. : The Z-axis can be adopted with roller type linear guide ways if equipped with high speed direct-driven spindle. )
Specs
Model: VP-2012
X-axis travel: 2,000 mm ( 78.7″ )
Y-axis travel: 1,200 mm ( 47.2″ )
Z-axis travel: 760 mm
Dist. form spindle nose to table top: 200 ~ 960 mm ( 7.87″ ~ 37.7″ )
Dist. between columns: 1,300 mm ( 51.1″ )
Table size ( X direction ): 2,000 mm ( 78.7″ )
Table size ( Y direction ): 1,100 mm ( 43.3″ )
Table load capacity: 3,500 kg ( 7,715 lb )
Spindle taper: CAT50
Spindle power ( cont. / 30 min. ): 11 / 15 kW ( 15 / 20 HP ) ( Std. )
22 / 26 kW ( 30 / 35 HP ) ( Opt. )
Spindle speed: 6,000 rpm ( Opt. 8,000 / 10,000 rpm )
X-axis rapid feed rate: 20,000 mm/min. ( 787 IPM )
Y-axis rapid feed rate: 20,000 mm/min. ( 787 IPM )
Z-axis rapid feed rate: 20,000 mm/min. ( 787 IPM )
Cutting feed rate: 10,000 mm/min. ( 393 IPM )
Tool magazine capacity: 30 T ( Opt. 40 T )
Max. tool diameter / adj. pocket empty: Ø 125 / 215 mm ( Ø 0.47″ / 8.46″ )
Max. tool length ( from gauge line ): 350 mm ( 13.7″ )
Max. tool weight: 15 kg ( 33 lb )
Positioning accuracy ( JIS B 6338 ): ± 0.010 mm ( ± 0.00039″ )
Positioning accuracy ( VDI 3441 ): P ≤ 0.02 mm / Full Travel
Repeatability ( JIS B 6338 ): ± 0.003 mm ( 0.0011″ )
Repeatability ( VDI 3441 ): Ps ≤ 0.015 mm ( Ps ≤ 0.00059″ )
Power requirement: AC 220 ± 10 % 3 , 60 / 50 Hz / 40 kVA
Pneumatic pressure requirement ( min. ): 5 ~ 8 kg / cm² ( 71 ~ 113.6 PSI )
Lubrication oil tank capacity: 6 liter ( 1.58 gal )
Hydraulic unit tank capacity ( pump ): 120 liter ( 31.7 gal ), [ 10 HP ]
Machine weight: 18,000 kg ( 39,680 lb )
