NEW YAMA SEIKI LG6030
Overview

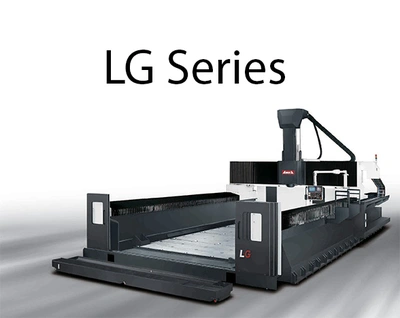

Gantry Type Machining Center
Introducing YAMA SEIKI with mature manufacturing abilities and advanced technology skills, the LG series gantry type machining center combines gantry type structure with adjustable crossbeam mechanism, strong horse power and high rigidity features, to provide you with a complete machining solution for extra large work pieces. It has been widely used in aerospace, shipbuilding, energy and machine tools industries.

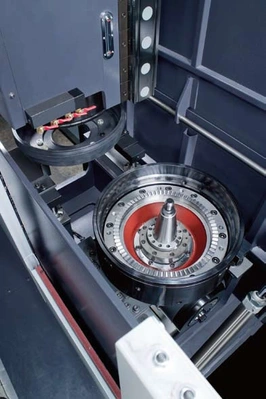

The LG series could be equipped with automatic head changer and vertical / horizontal ATC system to provide maximum efficiency as of a 5-face machining center.
Complete product line with full range specifications, the LG series could be equipped with self-developed milling heads, automatic head storage magazine and vertical / horizontal ATC system to provide high added cutting capabilities for large work pieces.
High Rigidity Structure
Combining our modular design concept and exclusive patented technologies, the LG series provides you with superior machining performance for super large work pieces. The LG-20070 is also the first super large machining center ever introduced with a 7,000 mm ( 275.5″ ) cross span among Taiwan manufacturers.

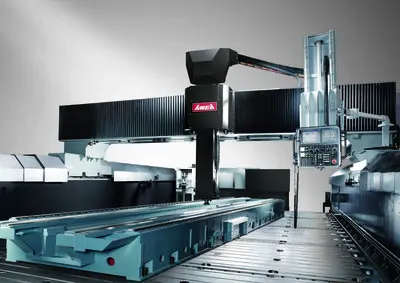

Adjustable Crossbeam Mechanism ( Patented )
YAMA SEIKI’s patented design has successfully overcome the physical limits, minimizing the deformation caused by the weight of the 7,000 mm ( 275.5″ ) super wide crossbeam, while ensuring optimal machining accuracy.

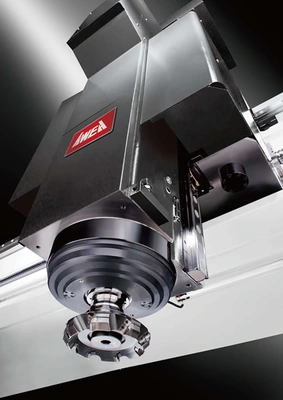

Optimum Spindle System
Specs
Model: LG 6030
X-axis travel: 6,000 mm ( 236.2″ )
Y-axis travel: 3,000 mm ( 118.1″ )
Z-axis travel: 1,000 mm ( 39.3″ )
Dist. form spindle nose to table top: 200 ~ 1,200 mm ( 7.8″~ 47.2″ )
Dist. between columns: 3,800 mm ( 149.6″ ) ( 3,500 mm ( 137.7″ ) )
Table size ( X direction ): 6,000 mm ( 236.2″ )
Table size ( Y direction ): 2,800 mm ( 110.2″ )
Table load capacity: 2,500 kg/m2 ( 35,550 PSI )
Spindle taper: CAT50
Spindle power ( cont. / 30 min. ): 22 / 26 kW ( 30 / 35 HP )
Spindle speed: 4,000 Gear Spindle ( Std. )；
5,000 / 6,000 Gear Spindle ( Opt. )；
6,000 / 8,000 Built-in Spindle ( Opt. )
X-axis rapid feed rate: 20 m/min. ( 788 IPM )
Y-axis rapid feed rate: 15 m/min. ( 590 IPM )
Z-axis rapid feed rate: 10 m/min. ( 393 IPM )
Cutting feed rate: 10 m/min. ( 393 IPM )
Tool magazine capacity: 32
Max. tool diameter / adj. pocket empty: Ø 127 / 215 mm ( Ø 5.0″ / 8.4″ )
Max. tool length ( from gauge line ): 350 mm ( 13.7″ )
Max. tool weight: 20 kg ( 44 lb )
Positioning accuracy ( JIS B 6338 ): ± 0.015 mm / Full Travel
( ± 0.00059″ / Full Travel )
Positioning accuracy ( VDI 3441 ): P = 0.035 mm ( P = 0.00137″ )
Repeatability ( JIS B 6338 ): ± 0.003 mm ( 0.000118″ )
Repeatability ( VDI 3441 ): Ps = 0.026 mm ( Ps = 0.00102″ )
Power requirement: AC 220 ± 10 % 3 , 60 / 50 Hz / 80 kVA
Pneumatic pressure requirement ( min. ): 5 ~ 8 kg / cm² ( 71 ~ 113.6 PSI )
Lubrication oil tank capacity: 6 liter ( 1.58 gal )
Hydraulic unit tank capacity ( pump ): 120 liter ( 31.7 gal ), [ 10 HP ]
Coolant tank capacity: 1,100 liter ( 290 gal )
