NEW YAMA SEIKI HVM-7033Y
Overview

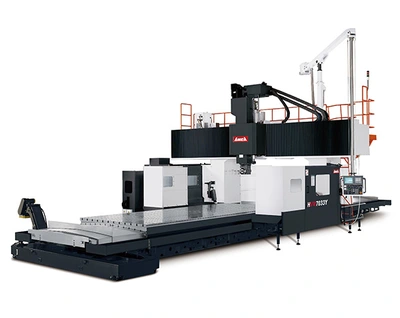

HVM-7033Y 5-Face Bridge Type Machining Center:
Specifications are subject to change without notice.
*1. The distance may be varied among different options. Please double check with your sales contact on the actual value.
Specs
Model: HVM-7033Y
X-axis travel: 236.2″
Y-axis travel: 177.2″
Z-axis travel: 39.3″
Distance between columns: 129.9″
Distance nose to table: 7.9″ ~ 47.2
( standard ),
15.7″ ~ 55.1″
( Option )
Table size ( X direction ): 237.0″
Table size ( Y direction ): 94.5″
Table load capacity: 44,000 lb
Spindle taper: CAT50
Spindle power ( cont. / 30 min. ): 30 / 35 HP
Spindle speed: 10 ~ 4,000 rpm
( in vertical direction ),
20 ~ 24,00 rpm
( in horizontal direction )
X-axis rapid feed rate: 295.2 IPM.
Y-axis rapid feed rate: 393.7 IPM
Z-axis rapid feed rate: 393.7 IPM
Cutting feed rate: 0.04 ~ 393.7 IPM.
Tool magazine capacity: 60 tools ( 90, 120 Option )
Max. tool diameter / adj. pocket empty: 5.0″ / 9.4″
Max. tool length ( from gauge line ): 15.7″
Max. tool weight: 55 lb
Positioning accuracy ( JIS B 6338 ): ± 0.0006″ ( full travel )
Repeatability ( JIS B 6338 ): ± 0.0001″
Length: 613″
Width: 321″
Height: 220″
Weight: 134,200 lb
