NEW YAMA SEIKI HVM-4025
Overview

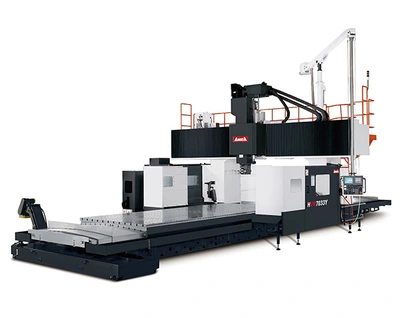

HVM-4025 5-Face Bridge Type Machining Center:
Specifications are subject to change without notice.
*1. The distance may be varied among different options. Please double check with your sales contact on the actual value.
Specs
Model: HVM-4025
X-axis travel: 157.5″
Y-axis travel: 126.0″
Z-axis travel: 39.3″
Distance between columns: 98.4″
Distance nose to table: 7.9″ ~ 47.2
( standard ),
15.7″ ~ 55.1″
( Option )
Table size ( X direction ): 158.3″
Table size ( Y direction ): 79.1″
Table load capacity: 26,400 lb
Spindle taper: CAT50
Spindle power ( cont. / 30 min. ): 30 / 35 HP
Spindle speed: 10 ~ 4,000 rpm
( in vertical direction ),
20 ~ 24,00 rpm
( in horizontal direction )
X-axis rapid feed rate: 590.6 IPM.
Y-axis rapid feed rate: 590.6 IPM
Z-axis rapid feed rate: 393.7 IPM
Cutting feed rate: 0.04 ~ 393.7 IPM.
Tool magazine capacity: 60 tools ( 90, 120 Option )
Max. tool diameter / adj. pocket empty: 5.0″ / 9.4″
Max. tool length ( from gauge line ): 15.7″
Max. tool weight: 55 lb
Positioning accuracy ( JIS B 6338 ): ± 0.0006″ ( full travel )
Repeatability ( JIS B 6338 ): ± 0.0001″
Length: 413″
Width: 267″
Height: 220″
Weight: 116,600 lb
