NEW YAMA SEIKI GV-500
Overview
HIGH SPEED VERTICAL CNC TURNING CENTERS

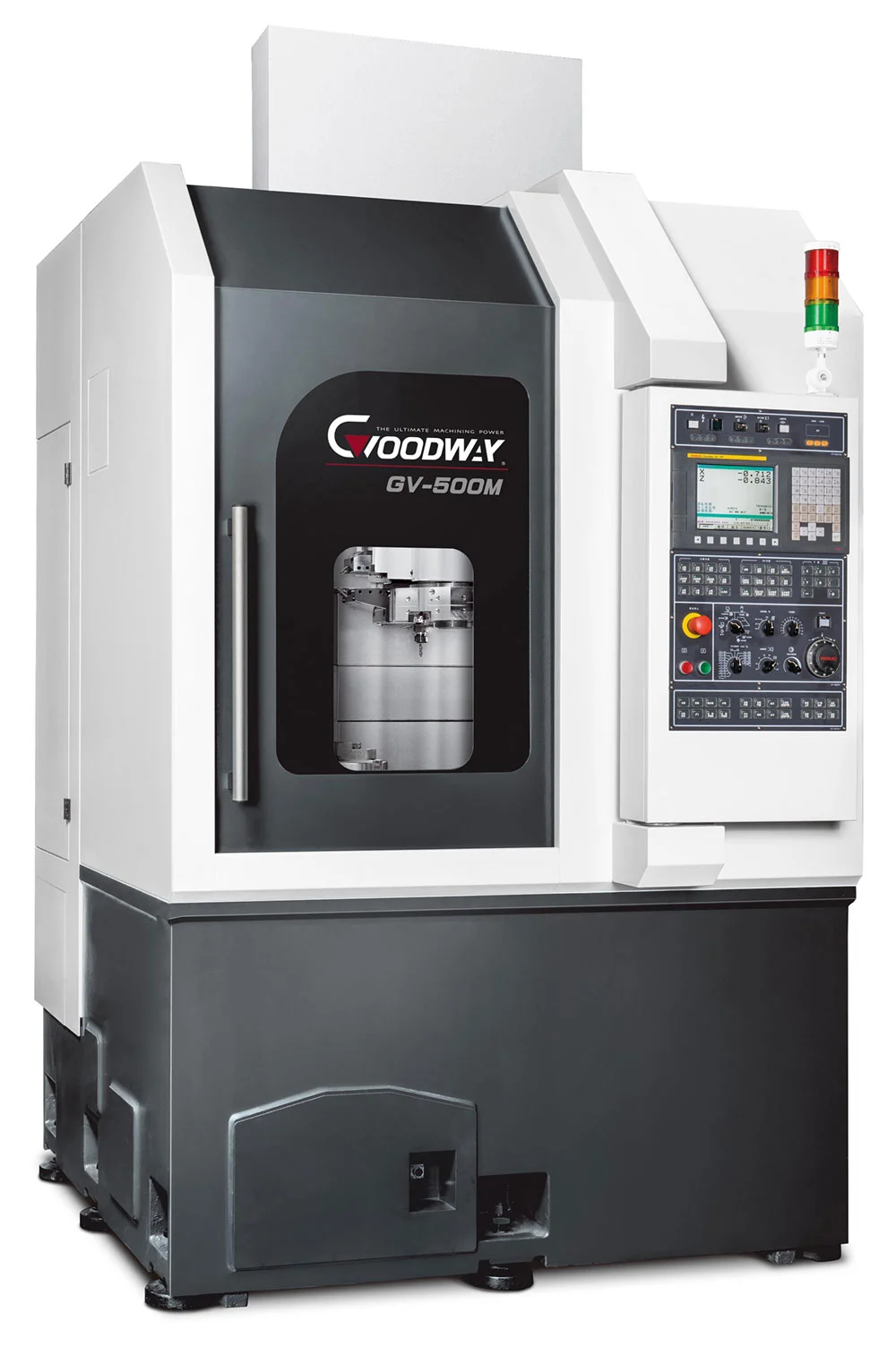

Packed with the latest machine tools technology and high precision turning capabilities, the Goodway GV-500 series high speed vertical CNC turning center combines a high rigidity structure and precision linear guideways with a servo indexing turret and powerful spindle ( max. torque up to 883 N-m ). These series features a compact machine size with heavy duty turning capabilities. In addition to the GV-500 series, the GV-500X series twin spindles & turrets equipped with loading & unloading systems can complete disk-shape work pieces that need multi-processing in one single setup which saves a great amount of time and increases production efficiency to meet your needs of today and tomorrow.
Fully enclosed splashguard keep chips and coolant contained for a safe clean working environment.
The low center of gravity design with 90 degree rotatable control panel provides easy access to load & unload parts and a user friendly operating interface.
Super compact machine size ( 3.3 m² ) equipped with rear discharge chip conveyor increases factory space usage while providing you with a convenient conveyor system planning.
Specs
Description: GV-500 Unit

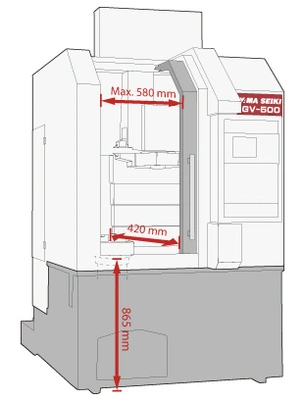

Max. / Swing over saddle: 651 mm (25.6″) mm(in)
Max. Turning Dia.: 651 mm (25.6″) mm(in)
Max. Turning Length: 521 mm (20.5″) mm(in)
Bar Capacity: 32 mm (1.25’) mm(in)
Chuck Size: (12″) (in)
Spindle Speed (rpm): 3,000 rpm r/min
Motor output ( cont. / 30 min.): 20 HP (15kW) / 25 HP (18.5 kW) HP/kW
Spindle Type: Belt
Spindle Nose: A2-8
Travel (X/Z): 13.78” (305 mm) / 21.65” (550mm) mm(in)
Rapid Travel (X/Z): 20m/min m/min
Slide Type: Linear Guide Way
X-axis servo motor: 2.1 HP ( 1.6 kW) HP (KW)
Z-axis servo motor: 4.0 HP ( 3.0 kW) HP (KW)
No. of Tool / Stations: 8 EA
Tool Size: 25mm (1”) OD mm(in)
ID mm(in): 50 mm (2”)
Coolant Tank: 66.04 gal (250L) Gallon / litre
Electric Power Supply: 40 kVA kVA
Dimensions
(L×WxH): 59.84″ x 86.61″ x 98.42″ ( 1,520 x 2,200 x 2,500 mm ) mm(in)
Weight: 5,000 kg (11,023 lbs.) kg(lb)
Controller: FANUC Oi-TD
