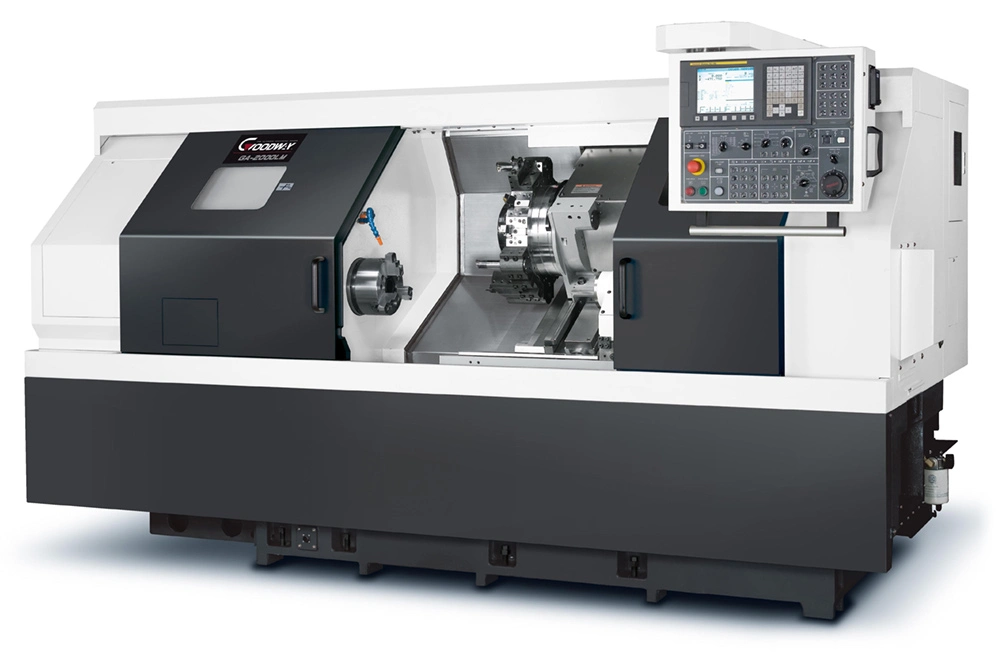

NEW YAMA SEIKI GS-2000(L)
Overview
Maximum Performance Turning Center
With the latest machine tools technology and powerful turning performance, YAMA SEIKI brings you the new GS-2000 / GS-3000 series maximum performance CNC turning center. Using 2 different lengths of beds and 5 different sizes of bar capacities combined with a powerful spindle, high speed servo indexing turret and high rigidity structure design, the GS-2000 / GS-3000 series becomes the best choice of machine tools for the new generation. Additionally, it can be equipped with an optional precision built-in type spindle, high torque gear type spindle, or a live tooling turret, Y-axis and sub-spindle which can accomplish mutli-tasking applications. With the perfect quality and complete tasking capabilities, the GS-2000 / GS-3000 series can easily various needs of today and tomorrow.
The modern 30° slant-bed design ensures outstanding structural rigidity and heavy duty cutting ability.
All standard turrets and live tooling turrets are self-developed and assembled by YAMA SEIKI which ensures high quality of the key components and allows the machine to provide optimal performance.
Spindle is driven by the wide-range FANUC αP series motor which can take heavier cuts in low RPM ranges.
Extra large Z-axis servo motors provide the thrust needed to efficiently drill big diameter holes.
Coolant system with roll-out coolant tank and high-pressure coolant pump.
Specs
CAPACITY: 800 mm (31.49″)
Max. Turning Diameter: 570 mm (22.44″)
Max. Turning Length: 780 mm (30.69″)
Bar Capacity: 51 mm (2’)
SPINDLE: (8″)
Hole through spindle: 65mm (2.55″)
Spindle Speed (rpm): 4,800 rpm
Motor output ( cont. / 30 min.): 15 / 18.5 kW
( 20 / 25 HP)
Spindle Type: Belt-Drive
Spindle Nose: A2-6
FEED: (300mm (11.81’) / (780mm (30.69’)
Rapid Travel (X/Z): 30 m/min
Slide Type: Hardened & Ground Box Ways
X-axis servo motor: 3.6 HP ( 2.7 kW)
Z-axis servo motor: 6.0 HP ( 4.5 kW)
BLOCK TOOL: 12
Tool Size: 25mm (1’)
ID mm(in): 40mm (1’)
TANK CAPACITY: 80 gal (300L)
POWER SUPPLY: 200
MACHINE: 3,550 x 2,120 x 2,260 ( 139.76’x 83.46’x 70.86’)
Weight: 6,500 kg (14,330lb)
NC: FANUC Oi-TD (Opt. 31i)
