NEW YAMA SEIKI FM-101
Overview

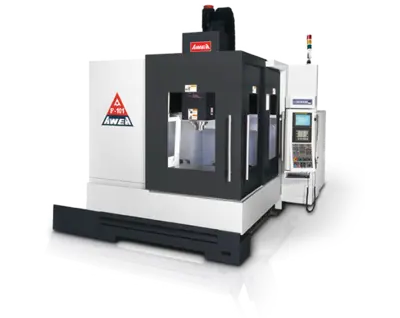

F-101 High Speed Machine
The sample machine is equipped with FANUC 31i controller and built-in high speed spindle MIRL-Neo ( 15,000 rpm ) developed by ITRI, Taiwan.
The brand new high speed series, with YAMA SEIKI core strengths, possess superb bridge type structure. The series are equipped with advanced FANUC controller and the software of YAMA SEIKI Optimal Parameter System. F-16 series are particularly suitable for high-end precision molding industry and other precision parts manufacturing in a wide range of industries.
The trustworthy series have excellent features including high speed, accuracy and durability. YAMA SEIKI superb products are capable of working as pioneers to explore business for customers.
1. Advanced and Novel Design
2. Solid Bridge Type Structure
3. Rapid, Accurate, Durable
4. Superior High Speed Mold-making Machine
Maximum Strength Structure
High-End Plastic Precision Die / Mold
High-End Automotive Light Mold
Mold Making in Telecom Industry
Mold Making in Electronic Industry
Mold Making in Computer Industry
Mold Making in Optical Industry
Precision Parts Manufacturing
Built-in Spindle
High Speed – Spindle
Built-in Spindle
Direct-Drive Spindle
Specs
Model: F-101
X-axis travel ( left & right ): 1,000 mm ( 39.4″ )
Y-axis travel ( in & out ): 1,000mm ( 39.4″ )
Z-axis travel ( up & down ): 500 mm ( 19.7″ )
Distance from spindle
nose to table top: 175 ~ 683 mm ( 6.9″ ~ 26.9″ )
Cutting feede rate: 20 m/min. ( 787 IPM )
Rapid feed rate: 30 m/min. ( 1180 IPM )
Table size ( L x W ): 1,500 x 650 mm
T slot ( Width x No. x pitch ): 18 x 7 x 140 mm
( 0.7″ x 0.3″ x 5.5″ )
Table load: 2,000 kg ( 4,400 lb )
Spindle speed: 12,000 rpm
Spindle brand: FANUC ( Direct Driven )
Spindle motor ( cont. / 30min. ): 18.5 kW ( 24.8 HP )
Max. torque: 118 N-M
Spindle taper: CAT40
Bearing lubrication: Grease
Spindle bearing diameter: Ø70mm ( 2.8″ )
Spindle cooling
system: The same temperature
as indoor ± 1°C
Max. tool diameter: Ø76mm ( 3.0″ )
Max.tool length: 300mm ( 11.8″ )
Max.tool weight: 7 kg ( 15.4 lb )
Number of tools: 30 pcs
Mode: Arm type
Air resource: 99.57 PSI ( 7 kg / cm² )
Total capacity: 55 KVA
Pump: 0.7 + 1.17 = ( 1.87 kW )
Volume of tank: 450 L
Machine size ( length x width x height ): 3,260 x 2,400 x 3,200 mm
( 128.3″ x 122.8″ x 126.0″ )
Machine weight: 12,500 kg ( 27,500 lb )
