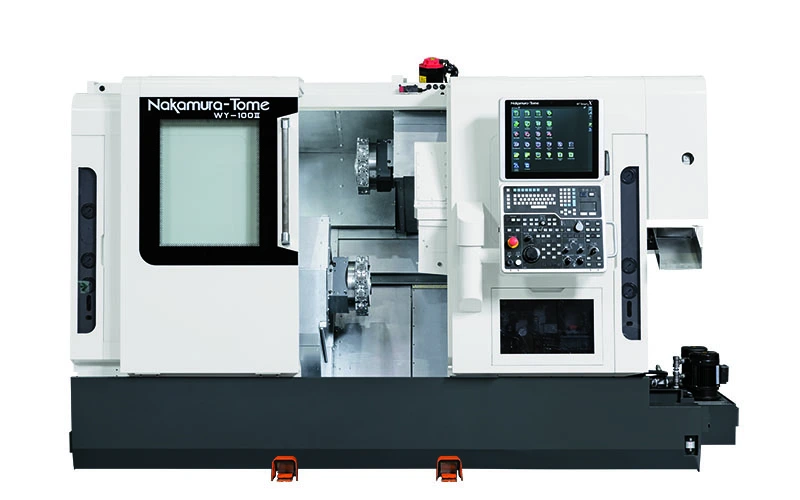

NEW NAKAMURA TOME WY100
Overview
Twin spindle machines with two turrets, upper and lower, both with Y-axis. With this configuration, the opportunity exists to drastically reduce cycle times, by offering highly capable features like pinch milling, drilling and turning, as well as unique “off center” interpolative functions that can be performed on both spindles.
FEATURES & BENEFITS
Opposing Two-Spindle, Two-Turret Construction
48 Tool Stations
24 Driven-tool Stations
3.3 in Y-axis travel on Upper Turret
2.55 in Y-axis travel on Lower Turret
8,000 min-1 Driven-tool Speed (Upper / Lower)
15/10 HP Left and Right Spindle Motor
7.5 HP x2 Driven-tool Motor (Upper / Lower)
2 in Bar Capacity
Specs
Capacity: Capacity
Max. turning diameter: 7.88″ | 22.44″
/ Max. turning length: 7.5″ / 22.44″
Distance between centers: max. 32.31″ – min. 7.88
Bar capacity: 2.56″
Chuck size: L,R: 6″ ( 165mm )
Axis travel: Axis travel
Slide travel X1/X2: 6″ | 5.55″
15st.: 5.7″ | 5.16″
Slide travel Z1/Z2: 22.44″ | 22″
15st.: 23.16″ | 22″
Slide travel B2: 24.4″
Slide travel Y1/Y2: ± 1.66 | ± 1.27″
15st.: ± 1.22″
Left and right spindle: Left and right spindle
Spindle speed: 4,500min-1
Spindle drive motor L/R: 15/10hp (20/15 hp op.)
Upper turrets: Upper turrets
Number of turrets: 1
Spindle speed: 6,000min-1/8,000min-1(op. Dodecagonal)
Driven motor: 9.5hp/3hp (7.5/3hp op.)
Type of turret head: Dodecagonal/24
/ Number of index positions: Pentagonal/15
Rotary system: Individual rotation/12
/ Number of driven-tool stations: Individual rotation/15
Lower turrets: Lower turrets
Number of turrets: 1
Spindle speed: 6,000min-1/8,000min-1(op. Dodecagonal)
Driven motor: 9.5hp/3hp (7.5/3hp op.)
Type of turret head: Dodecagonal/24
/ Number of index positions: Pentagonal/15
Rotary system: Individual rotation/12
/ Number of driven-tool stations: Individual rotation/15
General: General
Floor space (L×W×H): 135″ × 89″ × 76″
Machine weight: 9,000kg
