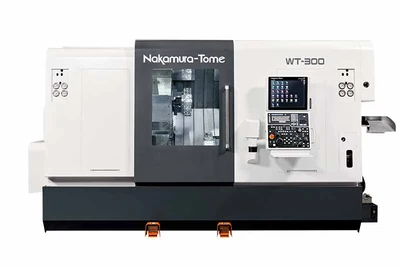

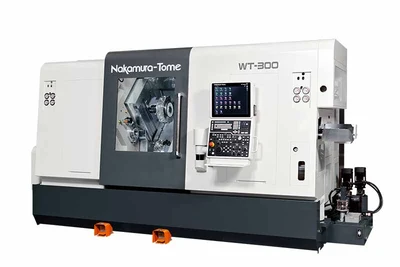

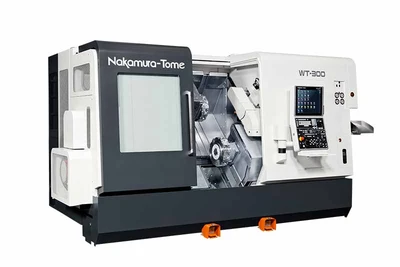

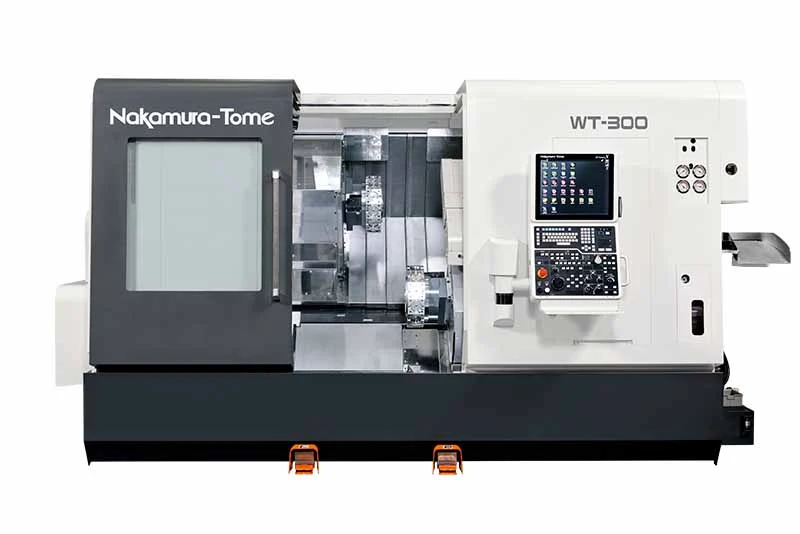

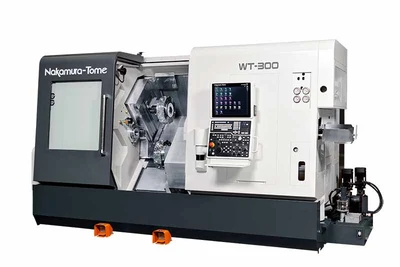

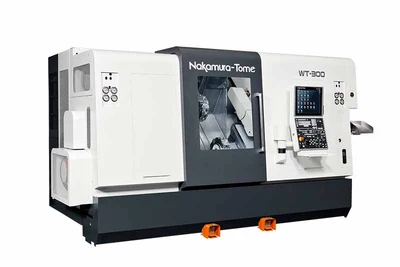

NEW NAKAMURA TOME WT300
Overview
Up to 30kW cutting power available for turning shaft-work with synchronized spindles.(Motor power 15/11kW per spindle)
Driven-Tool Motor Power 5.5/3.7kW,for heavy cutting with small tools.

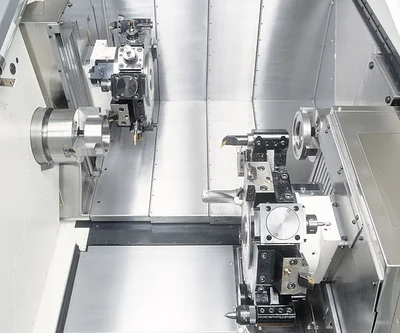

With upper / lower turret construction,4-axis machining as well as various other machining combinations possible on either spindle
With upper / lower turrets and opposed two-spindle construction,cycle time balancing and reduction is possible.
With up to 24-tools per turret,48 tools can be permanently available.
Specs
ø3.2 in ( 80) / ø4 (102) (op.) in (mm): ø3.2 in ( 80) / ø4 (102) (op.) in (mm)
10.6 (270) in (mm): 10.6 (270) in (mm)
max 43.3 (1100) / min 9.8 (250) in (mm): max 43.3 (1100) / min 9.8 (250) in (mm)
30.7 (780) in (mm): 30.7 (780) in (mm)
4 (102) (op.) in (mm): 4 (102) (op.) in (mm)
3.2 in (80 ) in (mm): 3.2 in (80 ) in (mm)
2.6 (65) in (mm): 2.6 (65) in (mm)
10″: 10″
7.4 (188) / 7.7 (195) in (mm): 7.4 (188) / 7.7 (195) in (mm)
30.7 (780) / 30.7 (780) in (mm): 30.7 (780) / 30.7 (780) in (mm)
±2.4 (60) in (mm): ±2.4 (60) in (mm)
33.5 (850) in (mm): 33.5 (850) in (mm)
630 (16) / 630 (16) in/min (m/min): 630 (16) / 630 (16) in/min (m/min)
1063 (27) / 1063 (27) in/min (m/min): 1063 (27) / 1063 (27) in/min (m/min)
3500 / 2500 rpm: 3500 / 2500 rpm
A2-8: A2-8
3.2 (81) / 4 (103) in (mm): 3.2 (81) / 4 (103) in (mm)
4500 rpm: 4500 rpm
Stepless: Stepless
A2-6: A2-6
2.5 (66) in (mm): 2.5 (66) in (mm)
1E-3 degree: 1E-3 degree
24: 24
24: 24
Individual Rotation: Individual Rotation
6000 rpm: 6000 rpm
Stepless: Stepless
12×2: 12×2
25 HP: 25 HP
25: 25
7.5 HP: 7.5 HP
30865 (14000) lbs (kg): 30865 (14000) lbs (kg)
