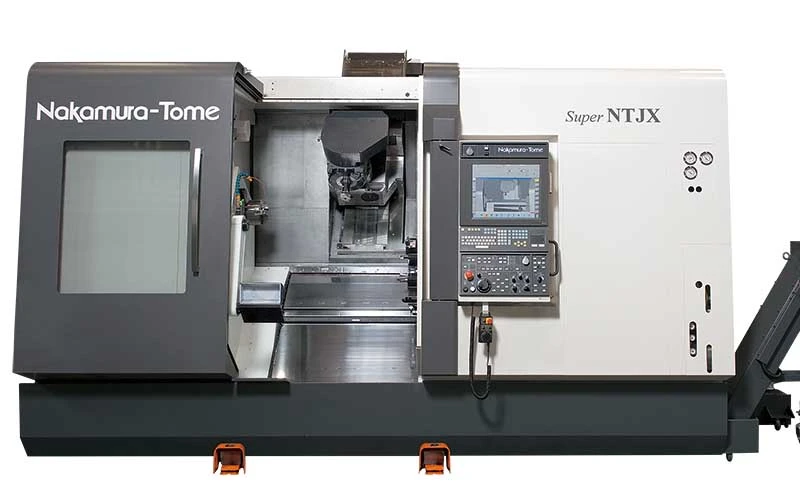

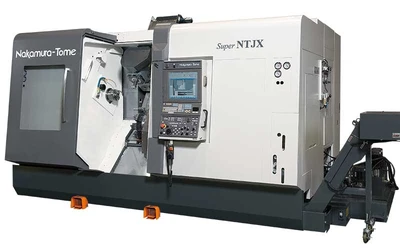

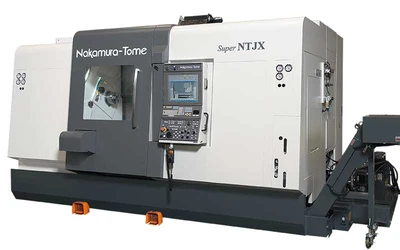

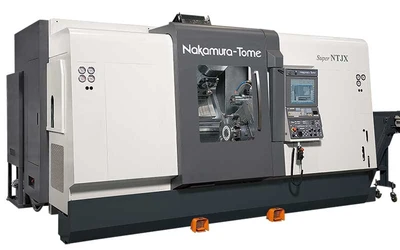

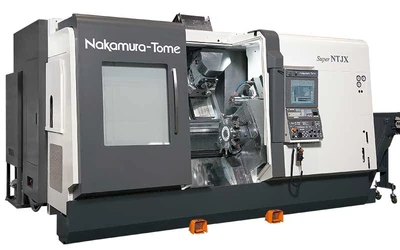

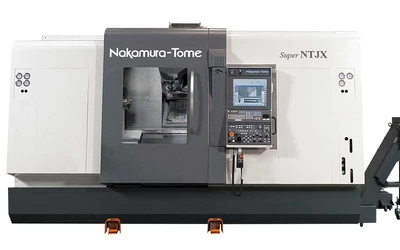

NEW NAKAMURA TOME NTJX
Overview
World Premiere! Y axis on lower turre
40tools Number of stock tool (op.80,120tools)
140mm / 70mm Y-axis on upper and lower slides!
6000min-1 Milling speed (Tool spindle)
7.5/3.7kW Built-in tool spindle motor
Up to 22kW cutting power available for turning shaft-work with synchronized spindles.(Left spindle motor 15/11kW、Right spindle motor 11/7.5kW)
5.5/3.7kW Lower turrets Driven-tool motor
190degree B-axis positioning range (±95degree)
Specs
9.7 (245) in (mm): 9.7 (245) in (mm)
43 (1090) in (mm): 43 (1090) in (mm)
2.5 in ( 65) in (mm): 2.5 in ( 65) in (mm)
2.0 in ( 51 ) in (mm): 2.0 in ( 51 ) in (mm)
8.0″ (203mm): 8.0″ (203mm)
18 (455) / 8.8 (222.5) in (mm): 18 (455) / 8.8 (222.5) in (mm)
43 (1090) / 40 (1005) in (mm): 43 (1090) / 40 (1005) in (mm)
±2.8 (70) / +0.8 (20) -2 (50) in (mm): ±2.8 (70) / +0.8 (20) -2 (50) in (mm)
42.6 (1080) in (mm): 42.6 (1080) in (mm)
1575 (40) in/min (m/min): 1575 (40) in/min (m/min)
630 (16) in/min (m/min): 630 (16) in/min (m/min)
1575 (40) in/min (m/min): 1575 (40) in/min (m/min)
630 (16) / 236 (6) in/min (m/min): 630 (16) / 236 (6) in/min (m/min)
4500 rpm: 4500 rpm
Stepless: Stepless
A2-6: A2-6
2.5 in ( 65) in (mm): 2.5 in ( 65) in (mm)
5000 rpm: 5000 rpm
Stepless: Stepless
A2-5: A2-5
2.0 in ( 51) in (mm): 2.0 in ( 51) in (mm)
1E-3 degree: 1E-3 degree
12: 12
24: 24
12,000 rpm: 12,000 rpm
CaptoC6: CaptoC6
40 (80, 120)(op.): 40 (80, 120)(op.)
2.8 (70) / 3.6 (90) in (mm): 2.8 (70) / 3.6 (90) in (mm)
11 (280) / 17.7 (8) in (mm)/ lbs (kg): 11 (280) / 17.7 (8) in (mm)/ lbs (kg)
1.3 sec: 1.3 sec
Curvic coupling (5 degree) Brake (0.001 degree): Curvic coupling (5 degree) Brake (0.001 degree)
20 HP: 20 HP
15: 15
7.5 HP: 7.5 HP
30865 (14000) lbs (kg): 30865 (14000) lbs (kg)
