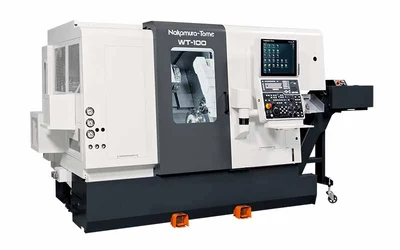

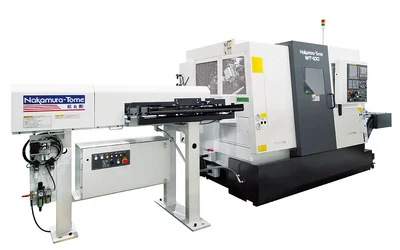

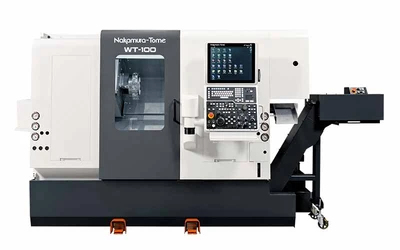

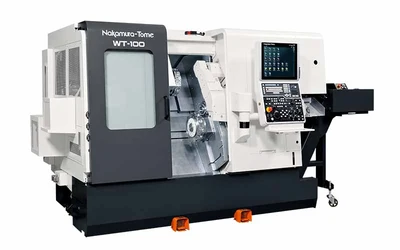

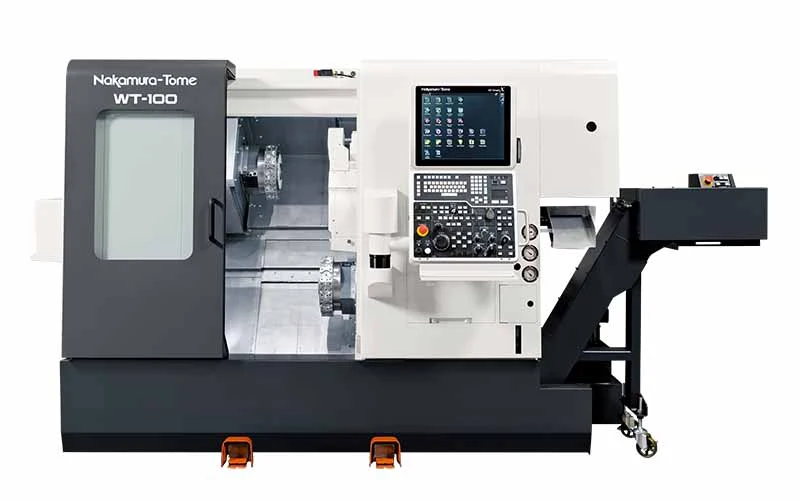

NEW NAKAMURA TOME WT100
Overview
Multi-tasking compact machine featuring state of the art capabilities.
Up to 22/15kW cutting power available for turning shaft-work with synchronized spindles.(Motor power 11/7.5kW per spindle)
Driven-Tool Motor Power 7.1/2.2kW,for heavy cutting with small tools.

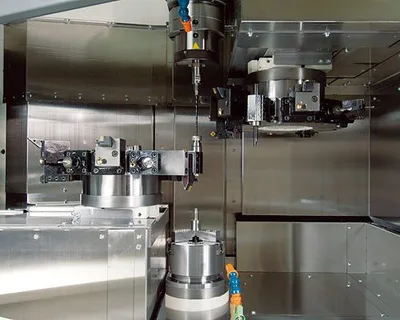

With upper / lower turret construction,4-axis machining as well as various other machining combinations possible on either spindle
With upper / lower turrets and opposed two-spindle construction,cycle time balancing and reduction is possible.
With up to 24-tools per turret,48 tools can be permanently available.
Specifications: (metric)
×1,940
Specs
7.5″/19.8″: 7.5″/19.8″
max. 29″ /min. 8.27″: max. 29″ /min. 8.27″
1.65″: 1.65″
6″ (165mm): 6″ (165mm)
5″ / 5″: 5″ / 5″
20″ / 20″ / 20.7″: 20″ / 20″ / 20.7″
± 1.2″: ± 1.2″
6,000min-1: 6,000min-1
15/10hp 55.6/28.5 ft.lbs: 15/10hp 55.6/28.5 ft.lbs
15/10hp 55.6/28.5 ft.lbs: 15/10hp 55.6/28.5 ft.lbs
1: 1
6,000min-1: 6,000min-1
Dodecagonal/24: Dodecagonal/24
10/3hp 11.8/5.9 ft.lbs: 10/3hp 11.8/5.9 ft.lbs
Individual rotation/12: Individual rotation/12
1: 1
6,000min-1: 6,000min-1
Dodecagonal/24: Dodecagonal/24
10/3hp 11.8/5.9 ft.lbs: 10/3hp 11.8/5.9 ft.lbs
Individual rotation/12: Individual rotation/12
90.5″ × 63.8″ × 76.4″: 90.5″ × 63.8″ × 76.4″
5,650kg: 5,650kg
