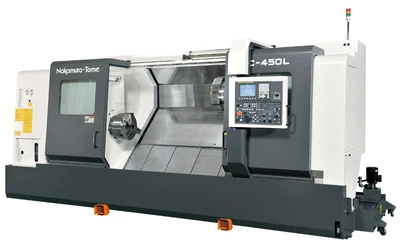

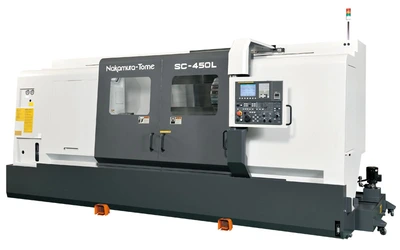

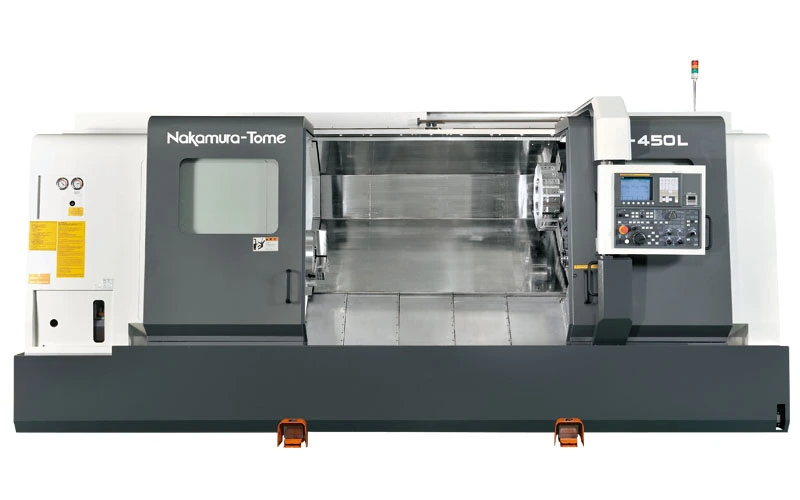

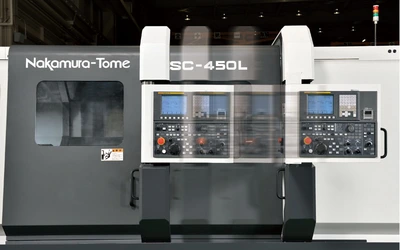

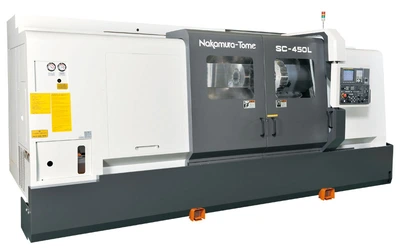

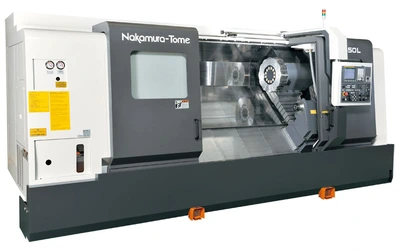

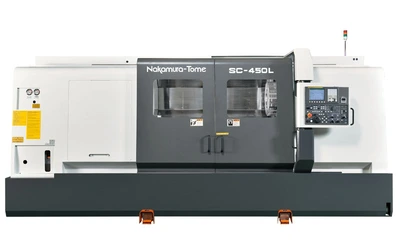

NEW NAKAMURA TOME SC450L
Overview
SC-450L
1520mm Max. Turning length
φ810mm Max. Swing Ｄｉａ．
Φ520mm Max. Workpiece Swing Diameter
NC servo driven Tailstock
Massive 45 Degree slant bed for maximum rigidity
30/22kW，856/627N・m Wide-Range motor for powerful cuts
Quicker ‘Non-lift’ turret indexing to cut idle time
Box type slides and rigid turret for high accuracy
Bar capacity 81mm standard
Dodecagonal 12 station turret
Specs
18.9 (480) in (mm): 18.9 (480) in (mm)
60 (1520) in (mm): 60 (1520) in (mm)
3.2 (81) or 3.5 ( 90mm ) in (mm): 3.2 (81) or 3.5 ( 90mm ) in (mm)
12 (305), 15 (381) or 18 (457) in (mm): 12 (305), 15 (381) or 18 (457) in (mm)
12.7 (322.5) in (mm): 12.7 (322.5) in (mm)
63.4 (1610) in (mm): 63.4 (1610) in (mm)
±3 (75)(op.) in (mm): ±3 (75)(op.) in (mm)
472.5 (12) in/min (m/min): 472.5 (12) in/min (m/min)
709 (18) in/min (m/min): 709 (18) in/min (m/min)
236 (6)(op.) in/min (m/min): 236 (6)(op.) in/min (m/min)
2500 rpm: 2500 rpm
Stepless: Stepless
A2-8: A2-8
3.3 (82) in (mm): 3.3 (82) in (mm)
1E-3 degree: 1E-3 degree
12: 12
12: 12
3600 rpm: 3600 rpm
12: 12
Individual Rotation: Individual Rotation
3600 rpm: 3600 rpm
Stepless: Stepless
12: 12
40 HP: 40 HP
7.5 HP: 7.5 HP
4.8 (120) in (mm): 4.8 (120) in (mm)
MT-4 (built-in center): MT-4 (built-in center)
Servo Tailstock 58.4 in Stroke in (mm): Servo Tailstock 58.4 in Stroke in (mm)
19842 (9000) lbs (kg): 19842 (9000) lbs (kg)
