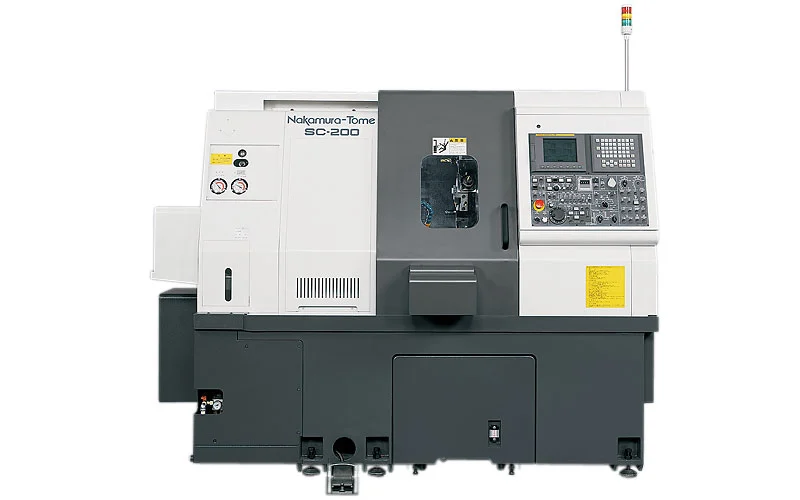

NEW NAKAMURA TOME SC200L
Overview

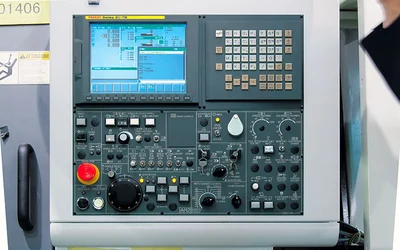

Largest Display : 19″ Touch Panel

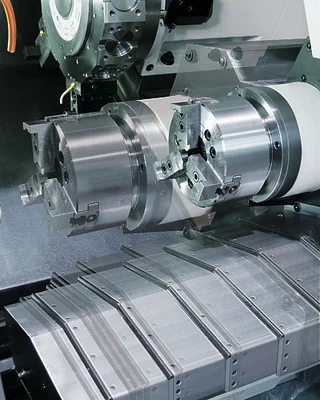

Opposed two-spindle,3-turret construction!
72tools Number of tool stations
36tools Number of driven-tool stations
112mm Y-axis on 3-turret
6000min-1 Driven-tool speed (Upper / Lower)
18.5/11kW + 18.5/11kW L/R spindle motor
5.5/3.7kW・24/16Ｎ・ｍx3 Driven-tool motor (Upper / Lower)
Specs
16 (410) in (mm): 16 (410) in (mm)
31.5 (800) in (mm): 31.5 (800) in (mm)
21 (530) in (mm): 21 (530) in (mm)
2.6 (65) in (mm): 2.6 (65) in (mm)
8 (215) in (mm): 8 (215) in (mm)
10.0 (261) in (mm): 10.0 (261) in (mm)
±1.6 (41)(op.) in (mm): ±1.6 (41)(op.) in (mm)
945 (24) in/min (m/min): 945 (24) in/min (m/min)
1418 (36) in/min (m/min): 1418 (36) in/min (m/min)
945 (24)(op.) in/min (m/min): 945 (24)(op.) in/min (m/min)
236 (6)(op.) in/min (m/min): 236 (6)(op.) in/min (m/min)
4500 rpm: 4500 rpm
Stepless: Stepless
A2-6: A2-6
2.6 (66) in (mm): 2.6 (66) in (mm)
6000 rpm: 6000 rpm
Stepless: Stepless
A2-5: A2-5
1.7 (43) in (mm): 1.7 (43) in (mm)
1E-3 degree: 1E-3 degree
24: 24
24: 24
6000 rpm: 6000 rpm
12: 12
Individual Rotation: Individual Rotation
6000 rpm: 6000 rpm
Stepless: Stepless
12: 12
15 HP: 15 HP
7.5 HP: 7.5 HP
7.5 HP: 7.5 HP
3.2 (80) in (mm): 3.2 (80) in (mm)
MT-3 built-in center: MT-3 built-in center
3.2 (80) in (mm: 3.2 (80) in (mm
11023 (5000) lbs (kg): 11023 (5000) lbs (kg)
