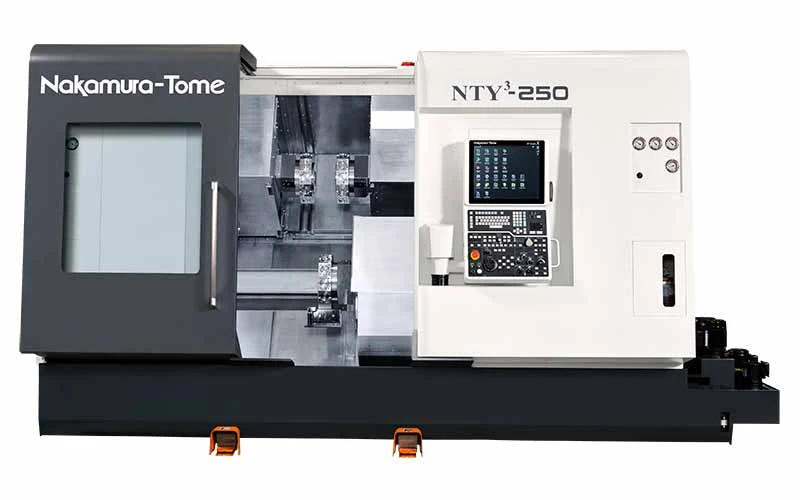

NEW NAKAMURA TOME 250

Capacity: Capacity
Max. turning diameter: 7.88″ – 22.44″
/ Max. turning length: 7.48″ – 22.44″
Distance between centers: max. 32.28″ – min. 7.88″
Bar capacity: 2.79″
Chuck size: 6″ (165mm)
Axis travel: Axis travel
Slide travel X1/X2: 5.9″ – 5.55″
15st.: 5.7″ – 5.13″
Slide travel Z1/Z2: 22.44″ – 22″
15st.: 23.16″ – 22″
Slide travel B2: 24.4″
Slide travel Y1/Y2: ± 1.66″ | ±1.28″
15st.: ±1.22 | ±1.22″
Left and right spindle: Left and right spindle
Spindle speed: 4,500min-1
Spindle drive motor L/R: 15/10hp (20/15hp op.)
Upper turrets: Upper turrets
Number of turrets: 1
Spindle speed: 6,000min-1/8,000min-1(op. Dodecagonal)
Driven motor: 10/3hp (7.5/3hp op.)
Type of turret head: Dodecagonal/24
/ Number of index positions: Pentagonal/15
Rotary system: Individual rotation/12
/ Number of driven-tool stations: Individual rotation/15
Lower turrets: Lower turrets
Number of turrets: 1
Spindle speed: 6,000min-1/8,000min-1(op. Dodecagonal)
Driven motor: 10/3hp (7.5/3hp op.)
Type of turret head: Dodecagonal/24
/ Number of index positions: Pentagonal/15
Rotary system: Individual rotation/12
/ Number of driven-tool stations: Individual rotation/15
General: General
Floor space (L×W×H): 135″ × 89″ × 76″
Machine weight: 9,000kg
