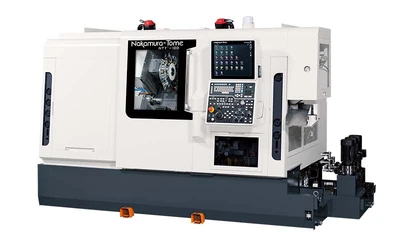

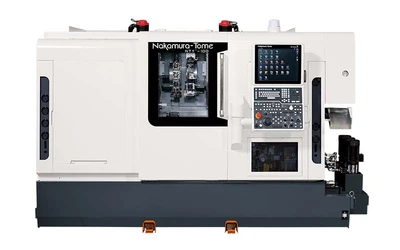

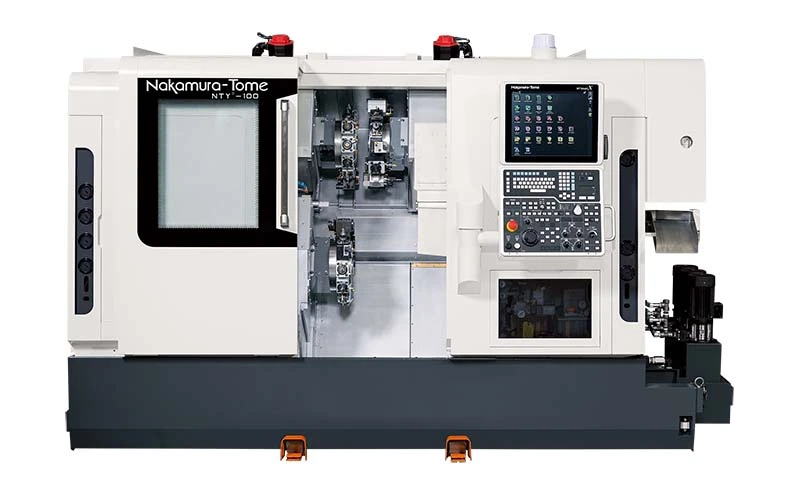

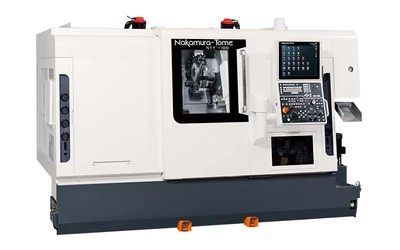

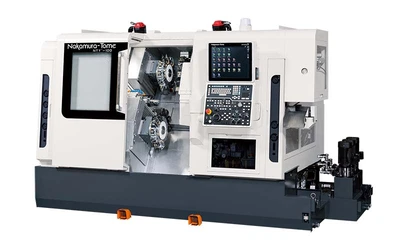

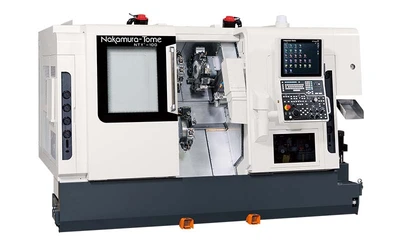

NEW NAKAMURA TOME 100

Capacity: Capacity
Max. turning diameter: 7.87″
Max. turning length: 22.4″
Distance between spindle nose: max. 32″ /min. 7.87″
Bar capacity: 2.56″
Chuck size: 6″ (165mm)
Axis travel: Axis travel
Slide travel X1/X2/X3: 5.9″ | 5.9″ | 5.55″
Slide travel Z1/Z2/Z3/B: 8.9″ | 8.9″ | 22″
Slide travel B: 24.4″
Slide travel Y1/Y2/Y3: ± 1 9/32″
Left spindle Right spindle R: Left spindle Right spindle R
Spindle speed: 4,500min-1
spindle motor L/R (max/cont.): 15hp/10hp
Torque (max/cont.): 59/30.5 ft.lbs

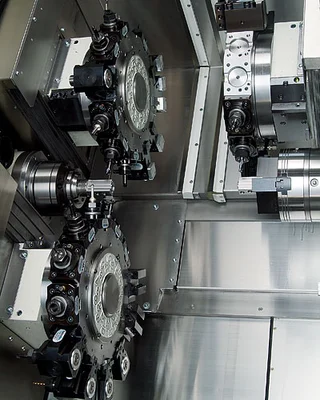

Upper turret: Upper turret
Number of turrets: 2
Spindle speed: 6,000min-1
Driven motor power (max/cont.): 10hp/3hp
Driven motor torque (max/cont.): 11.8/5.9 ft.lbs
Type of turret head: Dodecagonal
Number of index positions: 24
Rotary system: Individual rotation
Number of driven-tool stations: 12
Lower turret: Lower turret
Number of turrets: 1
Spindle speed: 6,000min-1
Driven motor power (max/cont.): 10 hp /3 hp
Driven motor torque (max/cont.): 11.8/5.9 ft.lbs
Type of turret head: Dodecagonal
Number of index positions: 24
Rotary system: Individual rotation
Number of driven-tool stations: 12
General: General
Floor space: 76″
L: 109.5″
W: 81.5″
Machine weight: 9,000kg
