NEW NAKAMURA TOME 200LMYS
Overview

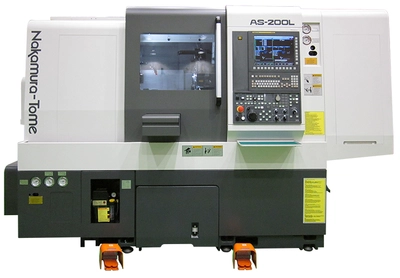

Nakamura-Tome AS-200LMY-S subspindle machine, a high-performance multitasking turning center.
The new AS-200LMY-S offers an upgraded long bed with subspindle. The machine is equipped with a powerful milling drive, together with a high-speed, high-accuracy C-axis and 82mm stroke Y-Axis that ensures accurate, finished parts and eliminates deburring, milling, drilling and repositioning of fixtures.
FEATURES & BENEFITS
Space Saving Combined Machine Tool with Y-axis & Milling Function
With Milling Function: 7.5/5 HP, Spindle Speed – 6000rpm
Strong Spindle Motor: 20/15 HP – 4,500 RPM
Subspindle Motor: 10/7.5 HP – 6,000 RPM
C-axis synchronization
High Speed Index – X-axis: 24 m/min, Z-axis: 36 m/min, C-axis: 600 min-1.
Turret: Max Dodecagonal Drum Turret (Max. 24 station)
Number of Milling Tool (dodecagonal drum turret): 12
Specs
15.8 (400) in (mm): 15.8 (400) in (mm)
12.6 (320) in (mm): 12.6 (320) in (mm)
13.4 (340) in (mm): 13.4 (340) in (mm)
31.5 in (mm): 31.5 in (mm)
22.5 (570) in (mm): 22.5 (570) in (mm)
2.6 (65) in (mm): 2.6 (65) in (mm)
1.7 (42) in (mm): 1.7 (42) in (mm)
8 (203) in (mm): 8 (203) in (mm)
9 (227.5) in (mm): 9 (227.5) in (mm)
23 (585) in (mm): 23 (585) in (mm)
±1.6 (41)(op.) in (mm): ±1.6 (41)(op.) in (mm)
945 (24) in/min (m/min): 945 (24) in/min (m/min)
1418 (36) in/min (m/min): 1418 (36) in/min (m/min)
236 (6)(op.) in/min (m/min): 236 (6)(op.) in/min (m/min)
4500 rpm: 4500 rpm
Stepless: Stepless
A2-6: A2-6
2.5 ( 65mm) in (mm): 2.5 ( 65mm) in (mm)
1E-3 degree: 1E-3 degree
12: 12
24: 24
6000 rpm: 6000 rpm
12: 12
Individual Rotation: Individual Rotation
6000 rpm: 6000 rpm
Stepless: Stepless
12: 12
20 HP: 20 HP
10 HP: 10 HP
7.5 HP: 7.5 HP
11023 (5000) lbs (kg): 11023 (5000) lbs (kg)
