NEW NAKAMURA TOME 200
Overview

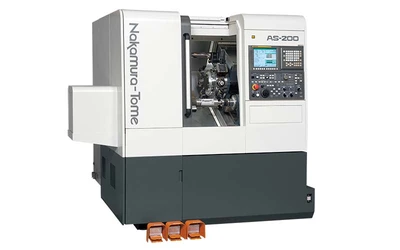

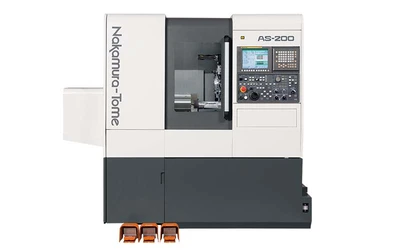

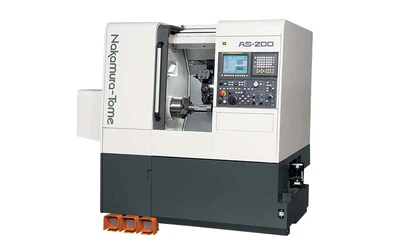

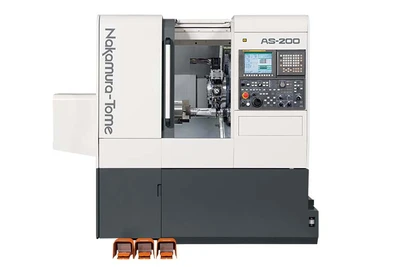

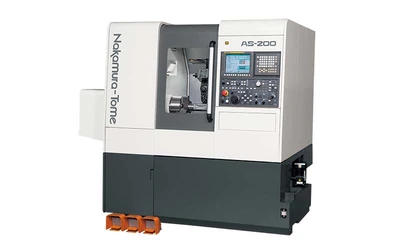

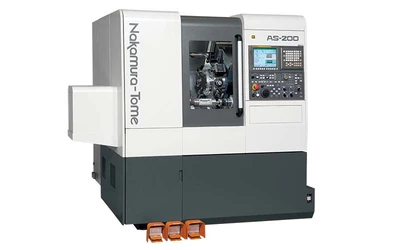

Nakamura Tome AS 200
Space saving combined machine tool with Y-axis & Milling function(standard)
With Y-axis! Stroke: 82mm
With Milling function: 5.5/3.7kw, spindle speed: 6000min-1
Stong spidle motor: 15/11kw
High speed index! X-axis: 24m/min, Z-axis:36m/min, C-axis: 600min-1.
Turret: Max dodecagonal drum turret(Max.24station) or 15station
Number of milling tool (dodecagonal drum turret): 12
Number of milling tool (pentadecagonal drum turret): 15
Specs
11.9″ (300 mm): 11.9″ (300 mm)
19.7″ (500 mm): 19.7″ (500 mm)
30.7″ /11″ (780 mm/ 280 mm) with sub spindle (op.): 30.7″ /11″ (780 mm/ 280 mm) with sub spindle (op.)
2″: 2 9/16″
8″ (215 mm): 8″ (215 mm)
7″ (177.5 mm): 7″ (177.5 mm)
21.7″ (550 mm): 21.7″ (550 mm)
±1.6″ (41 mm)(op.): ±1.6″ (41 mm)(op.)
19.7″ (500 mm) (op): 19.7″ (500 mm) (op)
630 in/min (16 m/min): 630 in/min (16 m/min)
1181 in/min (30 m/min): 1181 in/min (30 m/min)
1181 in/min (30 m/min) (op): 1181 in/min (30 m/min) (op)
236 in/min (6 m/min) (op): 236 in/min (6 m/min) (op)
4500 rpm: 4500 rpm
Stepless: Stepless
A2-6: A2-6
2.5″ ( 65 mm): 2.5″ ( 65 mm)
5000 rpm: 5000 rpm
Stepless: Stepless
A2-5: A2-5
2″ (52 mm): 2″ (52 mm)
1E-3 degree: 1E-3 degree
12: 12
12: 12
3600 rpm: 3600 rpm
12: 12
Individual Rotation: Individual Rotation
3600 rpm: 3600 rpm
Stepless: Stepless
12: 12
20 HP: 20 HP
15 ( op) HP: 15 ( op) HP
7.5 HP: 7.5 HP
3.2 (80) in (mm)Quill Taper: 3.2 (80) in (mm)Quill Taper
MT-4 Rotating Center: MT-4 Rotating Center
3.2″ (80 mm): 3.2″ (80 mm)
8378 lbs (3800 kg): 8378 lbs (3800 kg)
