NEW NAKAMURA TOME 100
Overview

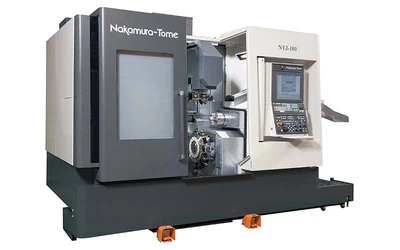

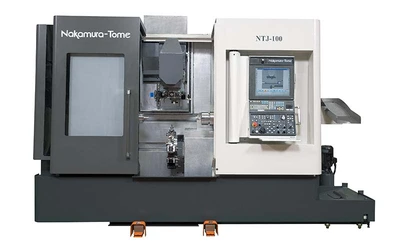

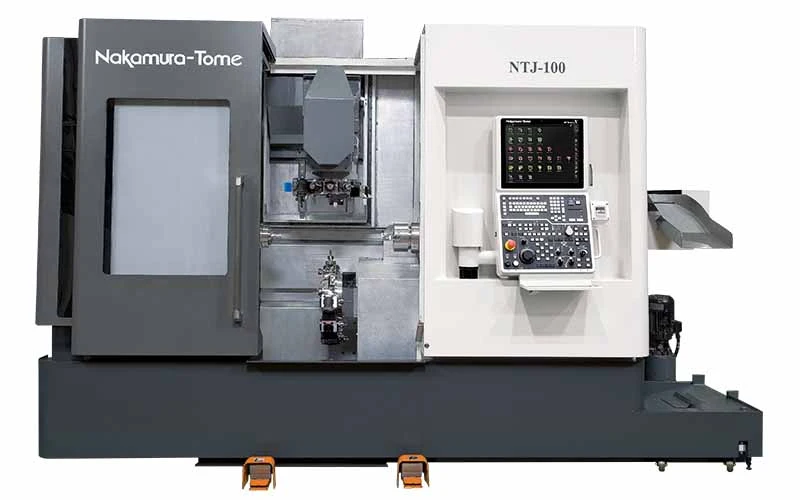

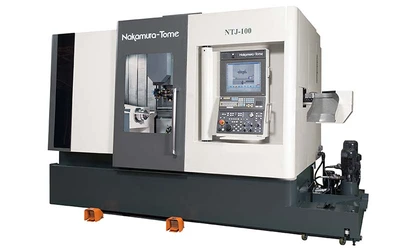

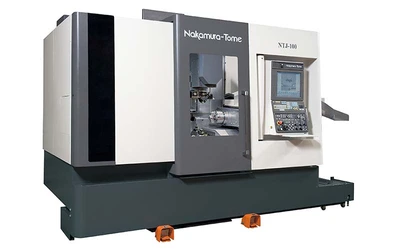

Nakamura NTJ 100
The Nakamura NTJ 100 is very unique with an upper turret having a B axis of 182 degree swing. Both Upper and Lower turrets have a Y axis. The machine has a 54 tool capacity. You can do profile milling with the upper turret.

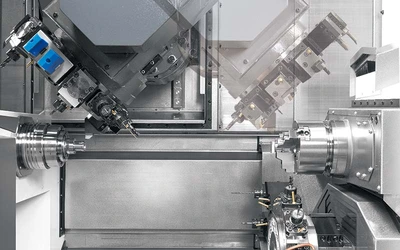

Swiveling range 182degree. B-axis with milling-tools and Y-axis offered as standard equipment

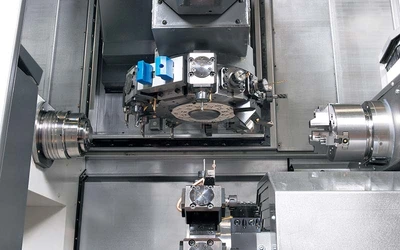

Opposed two-spindle,2-turret construction!
Up to 54 tool stations for Turning,24 tool stations for milling tools
24tools Number of driven-tool stations
Y-axis on upper and lower turret Upper 80mm,Lower 65mm
6000min-1 Driven-tool speed (Upper / Lower)
Double Performance! Milling-tool motor 7.1/2.2kW
Specs
6.9″ / 26.7″: 6.9″ / 26.7″
max. 36″ / min. 7.87″: max. 36″ / min. 7.87″
2″: 2.55″
6″ (165mm): 6″ (165mm)
13″ / 5″: 13″ / 5″
40.9″ / 26.7″ / 27.9″: 40.9″ / 26.7″ / 27.9″
3″ (±1.5″) / 2.55″ (±1.28″): 3″ (±1.5″) / 2.55″ (±1.28″)
5,000min-1: 4,500min-1(L)
15hp/10hp (11/7.5kW): 15hp/10hp (11/7.5kW)
15hp/10hp (11/7.5kW): 15hp/10hp (11/7.5kW)
1: 1
6,000min-1: 6,000min-1
Dodecagonal/24: Dodecagonal/24
10hp/3hp (7.1/2.2kW): 10hp/3hp (7.1/2.2kW)
Individual rotation/12: Individual rotation/12
5°: 5°
182°（±91°）: 182°（±91°）
1: 1
6,000min-1: 6,000min-1
Dodecagonal/24: Dodecagonal/24
7.1/2.2kW: 7.1/2.2kW
Individual rotation/12: Individual rotation/12
150″ × 83″: 150″ × 83″
101″: 101″
10,000kg: 10,000kg
