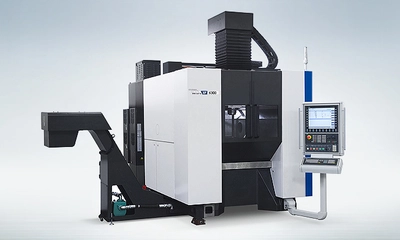

NEW HYUNDAI WIA XF6300
Overview
Features
Increases strength with all-in-one bed & column structure
Machines High-precision parts with x-axis box-in-box structure

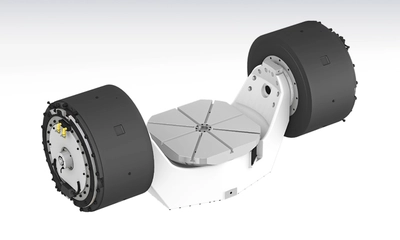

Built-in DDM table

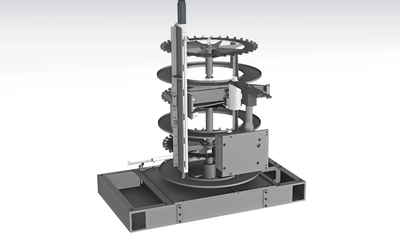

Standard 34-tool ring-type ATC (C-C time: 4.5 sec.)
19″ LCD monitor
Specifications (metric)
Specifications are subject to change without notice for quality improvement.
In case of any further information, please refer to the machine catalog.
Specs
Table Size: 24.8″ × 15.75 in
Max. Load Capacity: 1323 lbs
Spindle Driving Method: Built in
Spindle Taper: HSK-A63
Spindle RPM: 15,000 r/min
Spindle Power: 40/33.5 hp
Spindle Torque: 113/90.7 ft.lbs
Travel(X/Y/Z): 25.6/23.6/19.7 in
Rapid Feed Rate(X/Y/Z): 2362/2362/2362 in/min
Slide Type: ROLLER
No. of Tools: 34 EA
Tool Change Time
(Chip To Chip): 4.5 sec
